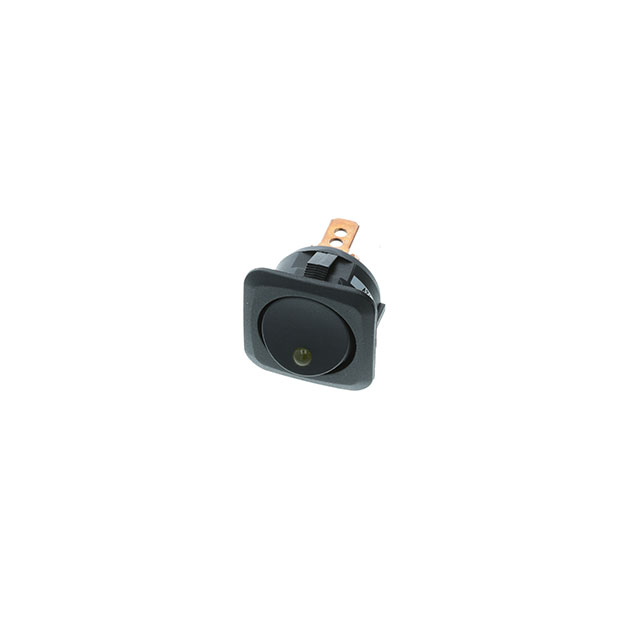

RC-1A-DC-1-AL
ActiveSwitch Components
SWITCH ROCKER SPST 25A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RC-1A-DC-1-AL
ActiveSwitch Components
SWITCH ROCKER SPST 25A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RC-1A-DC-1-AL |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round - Illuminated |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 25 A |
| Electrical Life | 6000 Cycles |
| Illumination Type, Color | Amber, LED |
| Illumination Voltage (Nominal) | 12 VDC |
| Mechanical Life | 10000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [diameter] | 24 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - DC | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.23 | |
Description
General part information
RC-1A-DC-1-AL
Rocker Switch SPST 25A (DC) Panel Mount, Snap-In
