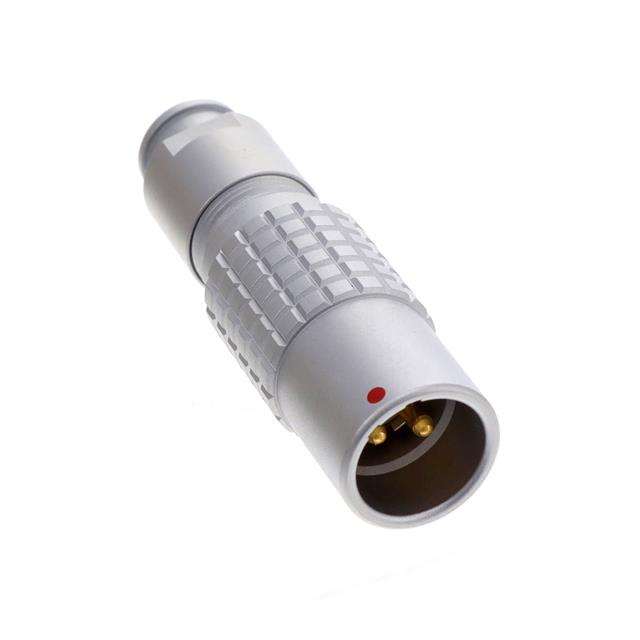

PHJ.2B.302.CLAD72Z

Active

LEMO

CONN RCPT MALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PHJ.2B.302.CLAD72Z

Active

LEMO

CONN RCPT MALE 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 48.43

Description

General part information

PHJ.2B Series

2 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PHJ.2B.302.CLAD72Z	PHJ.2B Series

Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Cable Opening	-	9.2 - 9.9 mm
Cable Opening	-	6.2 - 8.2 mm
Cable Opening	-	5.2 - 7.2 mm
Cable Opening	-	0.205 - 0.283 in
Cable Opening	-	0.244 - 0.323 in
Cable Opening	-	0.165 - 0.205 in
Cable Opening	-	4.2 - 9.2 mm
Cable Opening	-	5.2 mm
Cable Opening	-	0.323 - 0.362 in
Cable Opening [custom]	0.283 in, 0.244 in	0.244 - 0.283 in
Cable Opening [custom]	7.2 mm, 6.2 mm	0.362 - 7.2 mm
Color	Silver	Silver
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins, Receptacle Housing
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Contact Shape	-	Circular
Contact Size	-	0.7 mm
Contact Type	-	Crimp
Current Rating (Amps)	25 A	6 - 25 A
Fastening Type	Push-Pull	Push-Pull, Detent Lock
Features	Backshell	Backshell
Housing Color	-	Silver
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	-	Contacts Not Included
Number of Positions	2	2 - 14
Number of Positions	-	16
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	J	J
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	302	302 - 316
Shielding	Shielded	Shielded
Termination	-	Crimp
Type	-	For Male Pins

PHJ.2B Series

CONN RCPT MALE 14POS GOLD CRIMP

Part	Shielding	Current Rating (Amps)	Termination	Connector Type	Color	Orientation	Primary Material	Features	Cable Opening [custom]	Cable Opening [custom]	Shell Material	Contact Finish - Mating	Number of Positions	Insert Material	Backshell Material, Plating	Material Flammability Rating	Mounting Type	Fastening Type	Shell Size - Insert	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Ingress Protection	Contact Material	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Contact Shape	Type	Contact Type	Housing Color	Contact Size	Note
LEMO PHJ.2B.314.CYCD72	Shielded	6.5 A	Crimp	Male Pins, Receptacle	Silver	J	Metal	Backshell	0.244 in, 0.283 in	6.2 mm, 7.2 mm	Brass	Gold	14	Polyetheretherketone (PEEK)	Brass, Chrome	UL94 V-0	Free Hanging (In-Line)	Push-Pull	314	1 µm	39.4 µin	-55 °C	250 °C	Chrome	IP50	Brass
LEMO PHJ.2B.310.CLAD99	Shielded	8 A		Male Pins, Receptacle	Silver	J	Metal	Backshell		0.362 in, 0.39 in	Brass	Gold	10	Polyetheretherketone (PEEK)	Brass, Chrome	UL94 V-0	Free Hanging (In-Line)	Push-Pull	310	1 µm	39.4 µin	-55 °C	250 °C	Chrome	IP50	Brass	9.2 mm, 9.9 mm
LEMO PHJ.2B.302.CYCD82	Shielded	25 A	Crimp	Male Pins, Receptacle	Silver	J	Metal	Backshell			Brass	Gold	2	Polyetheretherketone (PEEK)	Brass, Chrome	UL94 V-0	Free Hanging (In-Line)	Push-Pull	302	1 µm	39.4 µin	-55 °C	250 °C	Chrome	IP50	Brass		8.2 mm	7.2 mm	0.283 in	0.323 in
LEMO PHJ.2B.306.CLAD62	Shielded	12 A		Male Pins, Receptacle	Silver	J	Metal	Backshell			Brass	Gold	6	Polyetheretherketone (PEEK)	Brass, Chrome	UL94 V-0	Free Hanging (In-Line)	Push-Pull	306	1 µm	39.4 µin	-55 °C	250 °C	Chrome	IP50	Brass		6.2 mm	5.2 mm	0.205 in	0.244 in
LEMO PHJ.2B.310.CLAD72Z	Shielded	8 A		Male Pins, Receptacle	Silver	J	Metal	Backshell	0.244 in, 0.283 in	6.2 mm, 7.2 mm	Brass	Gold	10	Polyetheretherketone (PEEK)	Brass, Chrome	UL94 V-0	Free Hanging (In-Line)	Push-Pull	310	1 µm	39.4 µin	-55 °C	250 °C	Chrome	IP50	Brass
LEMO PHJ.2B.302.CYCD82Z	Shielded	25 A	Crimp	Male Pins, Receptacle	Silver	J	Metal	Backshell			Brass	Gold	2	Polyetheretherketone (PEEK)	Brass, Chrome	UL94 V-0	Free Hanging (In-Line)	Push-Pull	302	1 µm	39.4 µin	-55 °C	250 °C	Chrome	IP50	Brass		8.2 mm	7.2 mm	0.283 in	0.323 in
LEMO PHJ.2B.314.CYZZ	Shielded			Receptacle Housing		J		Backshell			Brass		14	Polyetheretherketone (PEEK)			Free Hanging (In-Line)	Detent Lock, Push-Pull	314			-55 °C	250 °C	Chrome	IP50							Circular	For Male Pins	Crimp	Silver	0.7 mm	Contacts Not Included
LEMO PHJ.2B.314.CYCD62	Shielded	6.5 A	Crimp	Male Pins, Receptacle	Silver	J	Metal	Backshell			Brass	Gold	14	Polyetheretherketone (PEEK)	Brass, Chrome	UL94 V-0	Free Hanging (In-Line)	Push-Pull	314	1 µm	39.4 µin	-55 °C	250 °C	Chrome	IP50	Brass		6.2 mm	5.2 mm	0.205 in	0.244 in
LEMO PHJ.2B.314.CLAD62	Shielded	6.5 A		Male Pins, Receptacle	Silver	J	Metal	Backshell			Brass	Gold	14	Polyetheretherketone (PEEK)	Brass, Chrome	UL94 V-0	Free Hanging (In-Line)	Push-Pull	314	1 µm	39.4 µin	-55 °C	250 °C	Chrome	IP50	Brass		6.2 mm	5.2 mm	0.205 in	0.244 in
LEMO PHJ.2B.304.CYCD82Z	Shielded	15 A	Crimp	Male Pins, Receptacle	Silver	J	Metal	Backshell			Brass	Gold	4	Polyetheretherketone (PEEK)	Brass, Chrome	UL94 V-0	Free Hanging (In-Line)	Push-Pull	304	1 µm	39.4 µin	-55 °C	250 °C	Chrome	IP50	Brass		8.2 mm	7.2 mm	0.283 in	0.323 in
