FIXED IND 680NH 15A 5.5 MOHM SMD
HCP0703-R68-R
ObsoleteEaton - Electronics Division
FIXED IND 680NH 15A 5.5 MOHM SMD
Description
General part information
HCP0703-R68-R

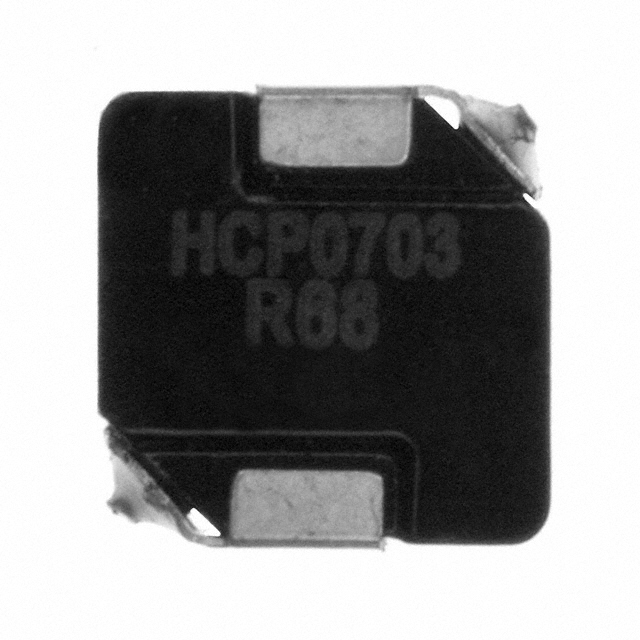

680 nH Shielded Drum Core, Wirewound Inductor 15 A 5.5mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | HCP0703-R68-R |
|---|---|
| Current - Saturation (Isat) | 25 A |
| Current Rating | 15 A |
| DC Resistance (DCR) (Max) | 5.5 mOhm |
| Height - Seated (Max) | 0.118 in |
| Inductance | 680 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Iron Powder |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.287 in |
| Size / Dimension Width | 0.276 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
