2950048

Active

Phoenix Contact

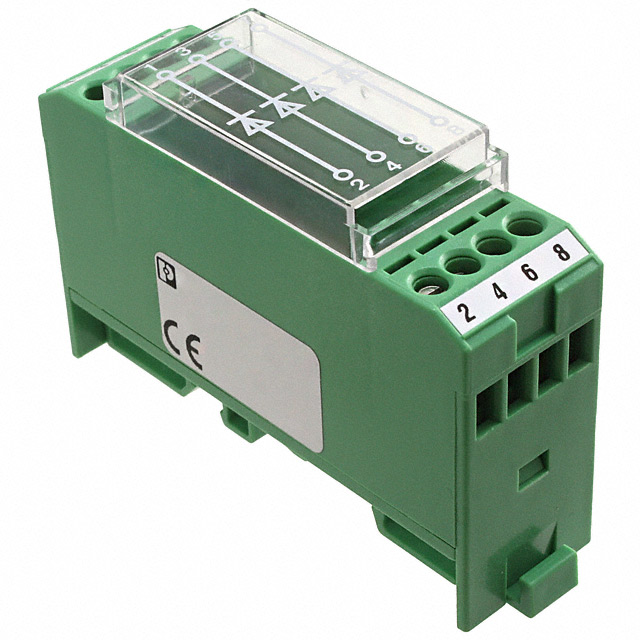

DIODE GP 1300V 700MA

Search across all available documentation for this part.

Active

Phoenix Contact

DIODE GP 1300V 700MA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2950048	29500 Series

Current - Average Rectified (Io) (per Diode)	700 mA	700 mA
Current - Reverse Leakage @ Vr	5 µA	5 µA
Diode Configuration	4 Independent	4 Independent, 7 Common Anode, 7 Common Cathode
Mounting Type	-	DIN Rail/Channel
Operating Temperature - Junction [Max]	50 °C	50 - 150 °C
Operating Temperature - Junction [Min]	-20 °C	-55 - -20 °C
Package / Case	Housed Axial	Housed Axial, Module
Speed	Standard Recovery >500ns	Standard Recovery >500ns
Speed	200 mA	200 mA
Supplier Device Package	Module	Module
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1300 V	1300 V

DIODE GP 1300V 700MA

Part	Technology	Speed	Speed	Diode Configuration	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io) (per Diode)	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Mounting Type
Phoenix Contact 2950048	Standard	Standard Recovery >500ns	200 mA	4 Independent	Module	50 °C	-20 °C	700 mA	5 µA	1300 V	Housed Axial
Phoenix Contact 2950077	Standard	Standard Recovery >500ns	200 mA	7 Common Anode	Module	50 °C	-20 °C	700 mA	5 µA	1300 V	Housed Axial
Phoenix Contact 2950064	Standard	Standard Recovery >500ns	200 mA	7 Common Cathode	Module	150 °C	-55 °C	700 mA	5 µA	1300 V	Module	DIN Rail/Channel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 63.53

General part information

Diode Array 4 Independent 1300 V 700mA Housed Axial
