1345 9MMX165MMC26

Active

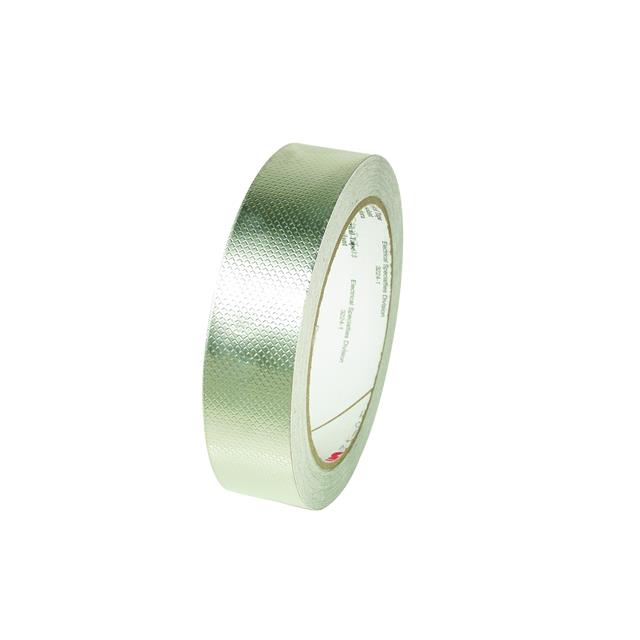

TAPE COPPER FOIL SILV 0.35"X18YD

Deep-Dive with AI

Search across all available documentation for this part.

1345 9MMX165MMC26

Active

TAPE COPPER FOIL SILV 0.35"X18YD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	26	$ 32.26

Description

General part information

1345 Series

Copper Foil Tape Acrylic Adhesive Silver 0.35" (9.00mm) X 54' (16.5m) 18 yds

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1345 9MMX165MMC26	1345 Series

Adhesive	Acrylic	Acrylic, Conductive, Single Sided, Acrylic, Non-Conductive, Single Sided
Backing, Carrier	Copper Foil, Tin Plated	Copper Foil, Tin Plated
Color	Silver	Silver
Length	54 ft	54 - 180 ft
Length	16.5 m	16.5 - 91.44 m
Length	18 yd	18 - 60 yds
Length	-	36 "
Material	-	Embossed Tin-Plated Copper Foil
Operating Temperature	-	-40 °C
Operating Temperature	-	130 °C
Shelf Life	60 Months	60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Tape Type	Copper Foil	Copper Foil
Thickness	0.0041 in	0.0041 in
Thickness	4.1 mils	4.1 mils
Thickness	0.104 mm	0.104 mm
Thickness - Backing, Carrier	0.0014 in	0.0014 in
Thickness - Backing, Carrier	1.4 mils	1.4 mils
Thickness - Backing, Carrier	0.036 mm	0.036 mm
Thickness - Overall	-	0.004 "
Thickness - Overall	-	0.1 mm
Type	-	Shielding Tape, Shielding Sheet
Usage	EMI Shielding	EMI Shielding
Width	-	76.2 - 584.2 mm
Width	-	1 - 23 in
Width	-	-
Width	-	0.25 - 3.5 in
Width	-	6.35 - 88.9 mm
Width	-	1 3/4
Width [y]	0.35 in	0.35 - 0.63 in
Width [y]	9 mm	9 - 16 mm

1345 Series

TAPE COPPER FOIL SILVER 23"X60YD

Part	Usage	Tape Type	Thickness	Thickness	Thickness	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Backing, Carrier	Width [x]	Width [x]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Color	Adhesive	Length	Length	Length	Shelf Life	Shelf Life Start	Operating Temperature [Min]	Operating Temperature [Max]	Material	Type	Width [y]	Width [y]	Thickness - Overall [custom]	Thickness - Overall [custom]	Width	Width	Width
3M 1345 23"X60YD	EMI Shielding	Copper Foil	0.0041 in	4.1 mils	0.104 mm	0.0014 in	1.4 mils	0.036 mm	Copper Foil, Tin Plated	584.2 mm	23 in	27 °C, 80 °F	10 °C	Silver	Acrylic	60 yds	55 m	180 ft	60 Months	Date of Manufacture
3M 1345-3/8"X18YD												27 °C, 80 °F	10 °C		Conductive, Single Sided		16.5 m	54 ft	60 Months	Date of Manufacture	-40 °C	130 °C	Embossed Tin-Plated Copper Foil	Shielding Tape	0.38 in	9.65 mm	0.004 "	0.1 mm
3M 1345 3.5"X60YD	EMI Shielding	Copper Foil	0.0041 in	4.1 mils	0.104 mm	0.0014 in	1.4 mils	0.036 mm	Copper Foil, Tin Plated			27 °C, 80 °F	10 °C	Silver	Acrylic	60 yds	55 m	180 ft	60 Months	Date of Manufacture									3.5 in	88.9 mm
3M 1345 9MMX165MMC26	EMI Shielding	Copper Foil	0.0041 in	4.1 mils	0.104 mm	0.0014 in	1.4 mils	0.036 mm	Copper Foil, Tin Plated			27 °C, 80 °F	10 °C	Silver	Acrylic	18 yd	16.5 m	54 ft	60 Months	Date of Manufacture					0.35 in	9 mm
3M 1345 25MMX165MMC9	EMI Shielding	Copper Foil	0.0041 in	4.1 mils	0.104 mm	0.0014 in	1.4 mils	0.036 mm	Copper Foil, Tin Plated			27 °C, 80 °F	10 °C	Silver	Acrylic	18 yd	16.5 m	54 ft	60 Months	Date of Manufacture									0.98 "	25 mm
3M 1345-5/8"X18YD												27 °C, 80 °F	10 °C		Conductive, Single Sided		16.5 m	54 ft	60 Months	Date of Manufacture	-40 °C	130 °C	Embossed Tin-Plated Copper Foil	Shielding Tape	0.63 "	16 mm	0.004 "	0.1 mm
3M 1345 3"X18YD	EMI Shielding	Copper Foil	0.0041 in	4.1 mils	0.104 mm	0.0014 in	1.4 mils	0.036 mm	Copper Foil, Tin Plated	76.2 mm	3 in	27 °C, 80 °F	10 °C	Silver	Acrylic	18 yd	16.5 m	54 ft	60 Months	Date of Manufacture
3M 1345 23"X18YD	EMI Shielding	Copper Foil	0.0041 in	4.1 mils	0.104 mm	0.0014 in	1.4 mils	0.036 mm	Copper Foil, Tin Plated	584.2 mm	23 in	27 °C, 80 °F	10 °C	Silver	Acrylic	18 yd	16.5 m	54 ft	60 Months	Date of Manufacture
3M 1345 1.75"X18YD	EMI Shielding	Copper Foil	0.0041 in	4.1 mils	0.104 mm	0.0014 in	1.4 mils	0.036 mm	Copper Foil, Tin Plated			27 °C, 80 °F	10 °C	Silver	Acrylic	18 yd	16.5 m	54 ft	60 Months	Date of Manufacture									1.75 in	44.45 mm	1 3/4
3M 1345-1/4"X18YD												27 °C, 80 °F	10 °C		Conductive, Single Sided		16.5 m	54 ft	60 Months	Date of Manufacture	-40 °C	130 °C	Embossed Tin-Plated Copper Foil	Shielding Tape			0.004 "	0.1 mm	0.25 in	6.35 mm
