CKB.H02.GLLG

Active

LEMO

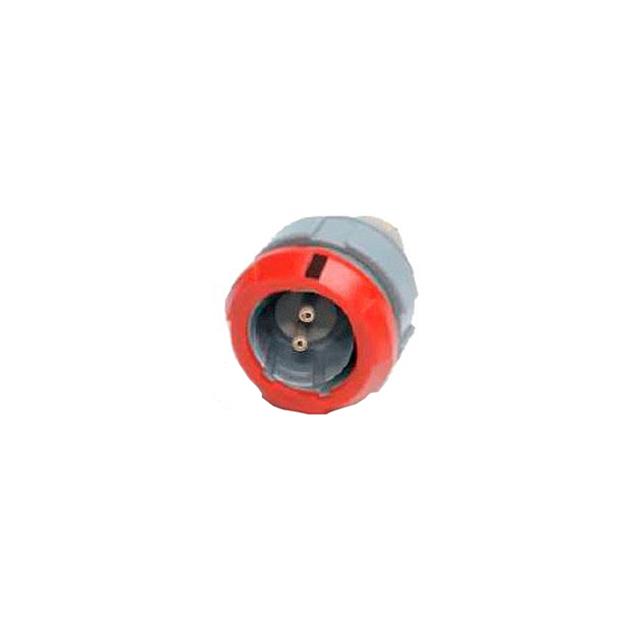

PANEL RECEPTACLE 2 POS

Search across all available documentation for this part.

Active

LEMO

PANEL RECEPTACLE 2 POS

Technical Specifications

Parameters and characteristics for this part

Specification	CKB.H02.GLLG

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Current Rating (Amps)	11 A
Fastening Type	Detent Lock, Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Orientation	B
Shell Material	Polysulfone (PSU)
Shell Size - Insert	H-2
Shielding	Unshielded
Voltage Rating	250 VDC

PANEL RECEPTACLE 2 POS

Part	Ingress Protection	Shell Size - Insert	Contact Finish - Mating	Orientation	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Current Rating (Amps)	Connector Type	Shell Material	Color	Insert Material	Material Flammability Rating	Applications	Number of Positions	Mounting Feature	Shielding
LEMO CKB.H02.GLLG	IP50	H-2	Gold	B	250 VDC	150 °C	-50 °C	Detent Lock, Push-Pull	11 A	Receptacle, Female Sockets	Polysulfone (PSU)	Gray	Polyetheretherketone (PEEK)	UL94 V-0	Automotive, Industrial, Medical, Testing Equipment & Measurement	2	Bulkhead - Rear Side Nut	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Female Sockets Solder Cup
