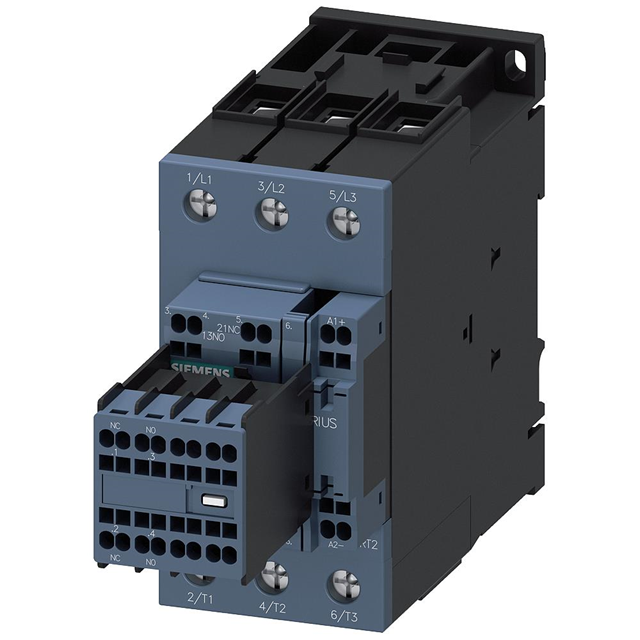

Specification	3RT20363XJ440LA2

Coil Power	23 W
Coil Voltage	72 VDC
Contact Form	A, PST-NO, Form, 3
Contact Rating (Current)	51 A
Features	Auxiliary Contacts
Mounting Type	Chassis Mount, DIN Rail
Must Operate Voltage	50.4 VDC
Operate Time	110 ms
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Pin Count	3 pins
Release Time	55 ms
Switching Voltage AC (Max)	690 VAC
Termination Style	Screw Terminal

3RT2036 Series

...

Part	Coil Power	Operate Time	Release Time	Coil Voltage (Min)	Coil Voltage (Max)	Mounting Type	Switching Voltage AC (Max)	Contact Rating (Current)	Features	Termination Style	Operating Temperature (Min)	Operating Temperature (Max)	Pin Count	Contact Form	Coil Voltage	Must Operate Voltage	Coil Voltage (Type)
Siemens 3RT20361AR64	188 VA	80 ms	18 ms	400 VAC	440 VAC	Chassis Mount DIN Rail	690 VAC	690 A	Auxiliary Contacts	Screw Terminal	-25 °C	60 °C	3 pins	3 A Form PST-NO
Siemens 3RT20361AH00	190 VA	80 ms	18 ms			Chassis Mount DIN Rail	690 VAC	51 A	Auxiliary Contacts	Screw Terminal	-25 °C	60 °C	3 pins	3 A Form PST-NO	48 V	38.4 V
Siemens 3RT20363SB30	40 W	110 ms	55 ms	21 VAC/DC	33 VDC	Chassis Mount DIN Rail	690 VAC	51 A	Auxiliary Contacts	Screw Terminal	-25 °C	60 °C	3 pins	3 A Form PST-NO			AC DC
Siemens 3RT20361SB30	40 W	110 ms	55 ms	21 VAC/DC	33 VDC	Chassis Mount DIN Rail	690 VAC	51 A	Auxiliary Contacts	Screw Terminal	-25 °C	60 °C	3 pins	3 A Form PST-NO			AC DC
Siemens 3RT20361AN24	188 VA	80 ms	18 ms			Chassis Mount DIN Rail	690 VAC	51 A	Auxiliary Contacts	Screw Terminal	-25 °C	60 °C	3 pins	3 A Form PST-NO	220 V	187 VAC
Siemens 3RT20361AF04	190 VA	80 ms	18 ms			Chassis Mount DIN Rail	690 VAC	51 A	Auxiliary Contacts	Screw Terminal	-25 °C	60 °C	3 pins	3 A Form PST-NO	110 V	88 V
Siemens 3RT20361AK64	188 VA	80 ms	18 ms			Chassis Mount DIN Rail	690 VAC	51 A	Auxiliary Contacts	Screw Terminal	-25 °C	60 °C	3 pins	3 A Form PST-NO	120 V	96 V
Siemens 3RT20361AU60	212 VA	80 ms	18 ms			Chassis Mount DIN Rail	690 VAC	51 A	Auxiliary Contacts	Screw Terminal	-25 °C	60 °C	3 pins	3 A Form PST-NO	277 V	235.5 V
Siemens 3RT20361XF400LA2	23 W	110 ms	55 ms			Chassis Mount DIN Rail	690 VAC	51 A	Auxiliary Contacts	Screw Terminal	-40 °C	70 °C	3 pins	3 A Form PST-NO	110 V	77 VAC
Siemens 3RT20361AP00	190 VA	80 ms	18 ms			Chassis Mount DIN Rail	690 VAC	70 A	Auxiliary Contacts	Screw Terminal	-25 °C	60 °C	3 pins	3 A Form PST-NO	230 VDC	184 VDC
