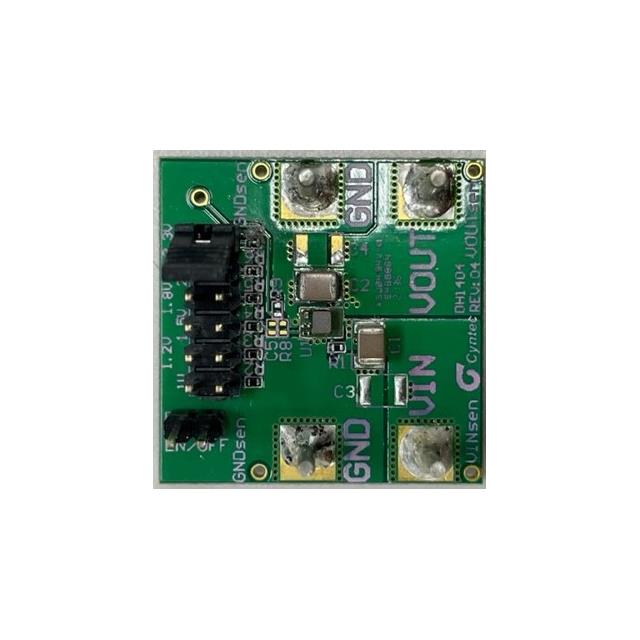

MUN12AD01-SG EVB
ActiveDelta Electronics/Cyntec
MUN12AD01-SG EVAL BOARD
MUN12AD01-SG EVB
ActiveDelta Electronics/Cyntec
MUN12AD01-SG EVAL BOARD
Description
General part information
MUN12AD01-SG EVB
MUN12AD01-SG - DC/DC Converter 1, Non-Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | MUN12AD01-SG EVB |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 1 A |
| Main Purpose | DC/DC Converter |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | MUN12AD01-SG |
| Voltage - Input (Maximum) | 16 V |
| Voltage - Input (Minimum) | 4.5 V |
| Voltage - Output | Adjustable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
