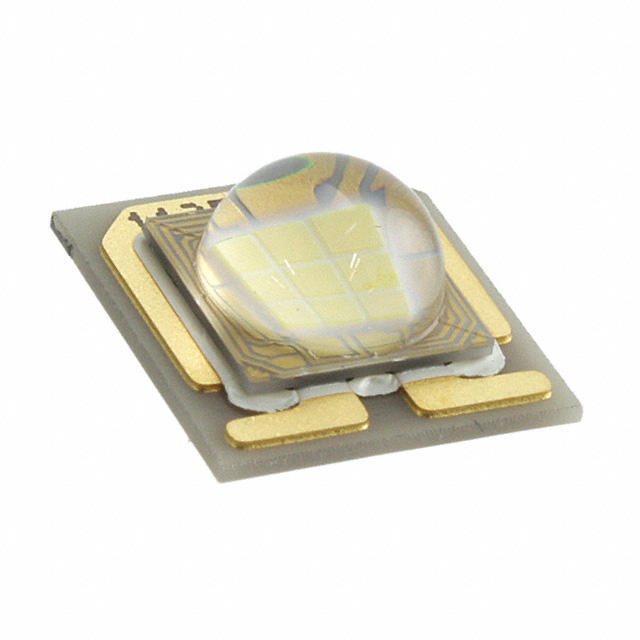

LXS9-PW30 - LXS9-PW30

LXS9-PW30

Obsolete
Lumileds

LED UNI-COLOR WHITE 1175LM 3000K CHIP LED 3-PIN SMD TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
LXS9-PW30 - LXS9-PW30

LXS9-PW30

Obsolete
Lumileds

LED UNI-COLOR WHITE 1175LM 3000K CHIP LED 3-PIN SMD TRAY

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationLXS9-PW30
ColorWhite, Warm
ConfigurationSquare
CRI (Color Rendering Index)90
Current - Max [Max]900 mA
Height [z]6.09 mm
Lens TypeDomed
Light Emitting Surface (LES) [diameter]8.06 mm
Lumens/Watt @ Current - Test66 lm/W
Luminous Flux @ Current/Temperature1175 lm
Size / Dimension [x]13.87 mm
Size / Dimension [y]12.87 mm
Temperature - Test85 °C
TypeLED Module
Viewing Angle105 °
Voltage - Forward (Vf) (Typ)25.6 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

LXS9-PW30

The LUXEON S1000 emitters deliver uniform beam intensity and high flux density from a uniform source. This enables tight beam control at the system level using secondary optics to provide the high center beam intensity, uniform beam and crisp, single shadow required for high performance accent spotlighting applications. LUXEON S1000 delivers tight Correlated Color Temperature control to ensure consistency in system color point. In addition these parts deliver the efficacy, lifetime and reliability that all LUXEON LEDs are renowned for.Specified, targeted and tested hot, at real world operating temperatures: Tj = 85°C, to ensure in application performance High flux density from 8mm diameter source products in 2700K, 3000K, 3500K, 4000K with 80 CRI and 3000K with 90 CRI Uniform intensity and color across source with high efficacy for sustainable design Freedom from Binning delivers color consistency within either 3-step or 4-step MacAdam ellipse Exceed ENERGY STAR lumen maintenance requirements Recognized under the Component Recognition Program of Underwriters Laboratories Inc. UL listing E327436
