2905466
ActivePhoenix Contact

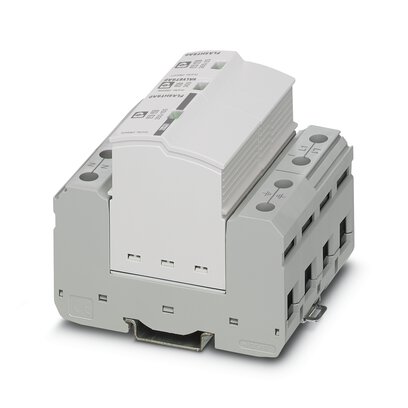

INDUSTRIAL SURGE PROTECTORS FLT-SEC-T1+T2-1S- 350/25-FM
2905466
ActivePhoenix Contact
INDUSTRIAL SURGE PROTECTORS FLT-SEC-T1+T2-1S- 350/25-FM
Description
General part information
2905466
INDUSTRIAL SURGE PROTECTORS FLT-SEC-T1+T2-1S- 350/25-FM
Technical Specifications
Parameters and characteristics for this part
| Specification | 2905466 |
|---|---|
| Approval Agency | CB, cUR, cURus, EAC, UR |
| Current - Discharge (Max) | 100 kA |
| Current - Discharge (Nom) | 25 kA |
| Current - Short Circuit Rating (SCCR) | 25 kA |
| Form | Module, Base |
| Mounting Type | DIN Rail |
| Number of Poles | 1 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Type | Type 1, Type 2 |
| Voltage - Continuous Operating (Max) (MCOV) | 350 VDC |
| Voltage - Protection Level (VP) (2416) | 2.2 kV |
| Voltage - Protection Rating (VPR) | 1.5 kV |
