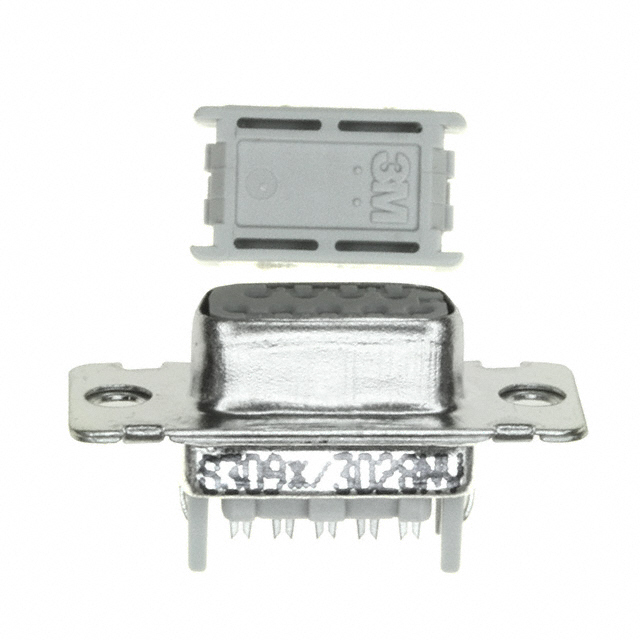

8309-6000 - 8309-6000

8309-6000

Active
3M (TC)

DE610012648 8309-6000=9/DSUB/SKT/OP/30AVG/100PAK ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect CatalogDatasheet
8309-6000 - 8309-6000

8309-6000

Active
3M (TC)

DE610012648 8309-6000=9/DSUB/SKT/OP/30AVG/100PAK ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsInterconnect CatalogDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification8309-6000
ColorGray
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish Thickness0.76 Ám
Contact Finish Thickness30 Áin
Contact MaterialCopper Alloy
Contact TypeSignal
Dielectric MaterialGlass Filled, Polybutylene Terephthalate (PBT), Polyester
FeaturesFeed Through
Flange FeatureHousing/Shell (Unthreaded)
Material Flammability RatingUL94 V-0
Number of Positions9
Number of Rows2
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Shell Size, Connector Layout [custom]DE, E
Shell Size, Connector Layout [custom]1
TerminationIDC, Ribbon Cable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 7.12
10$ 6.43
25$ 6.08
40$ 5.93
100$ 5.63
300$ 5.04
500$ 4.74
1000$ 4.15
2400$ 3.94
NewarkEach 1$ 7.35
10$ 7.05
25$ 6.51
50$ 6.02
100$ 5.76
250$ 5.07
500$ 4.93
1000$ 4.18

Description

General part information

8309 Series

9 Position D-Sub Receptacle, Female Sockets Connector
