FMCA2533-100CM
ActiveFairview Microwave
CBL ASSY 2.2-5JACK-TYPE NJACK 39
FMCA2533-100CM
ActiveFairview Microwave
CBL ASSY 2.2-5JACK-TYPE NJACK 39
Description
General part information
FMCA2533-100CM

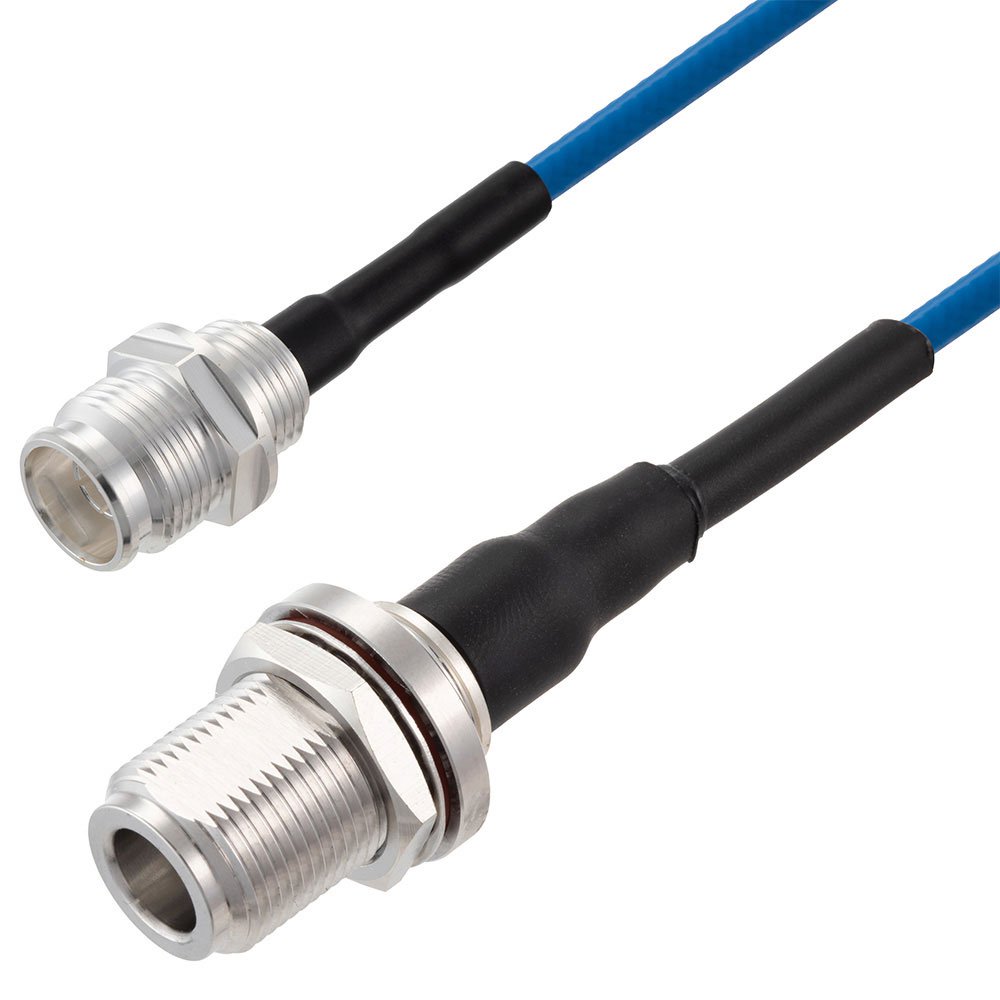

Cable Assembly Coaxial 2.2/5 to N-Type TFT-402LF 39.4" (1.0m) 3.3'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2533-100CM |
|---|---|
| 1st Connector | 2.2/5 Jack |
| 1st Connector - Type | Jack |
| 1st Connector Dimension (1) | 2.2 mm |
| 1st Connector Dimension (2) | 5 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | 402LF, TFT |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Length | 39.4 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | 2.2/5 to N-Type |
