HPF-04-02-T-S-K-TR

Active

Samtec Inc.

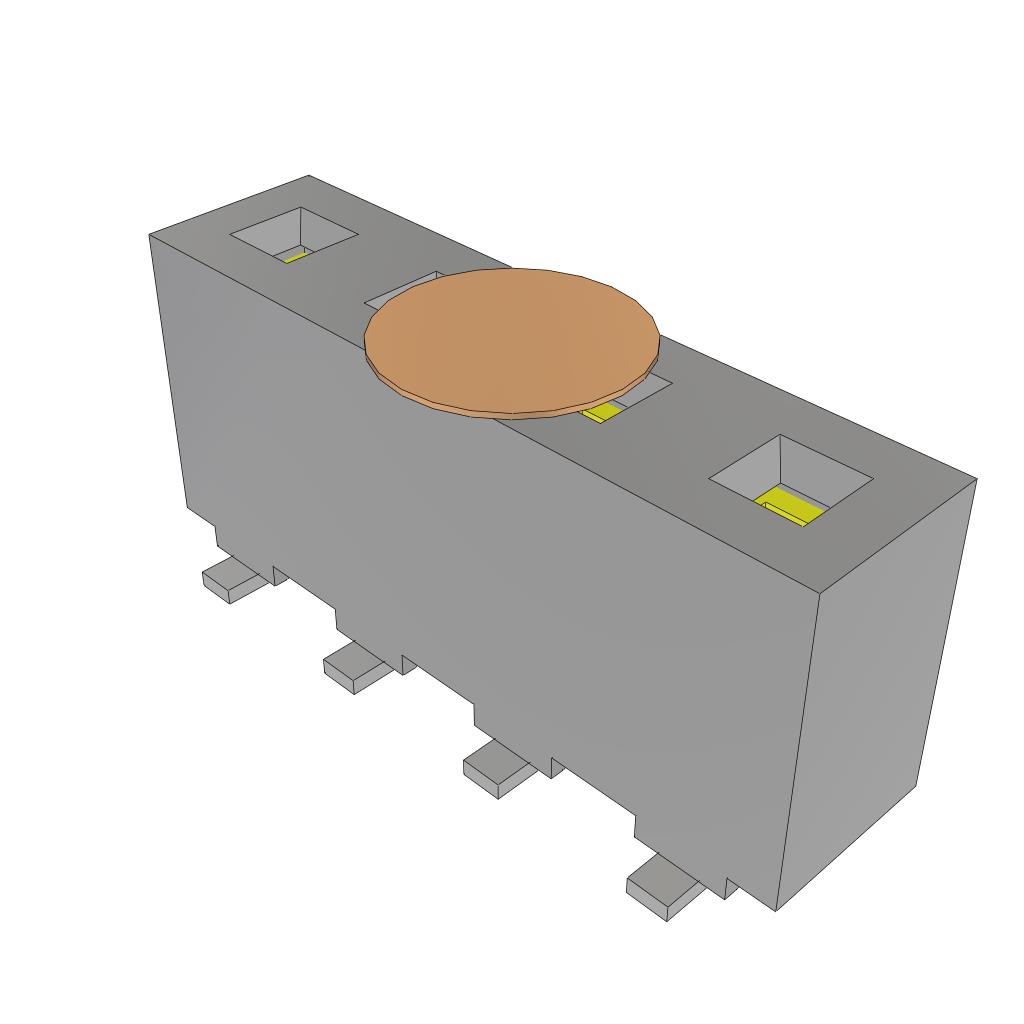

.200 HI POWER SOCKET ASSEMBLY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHPF Datasheet HPF Series Other Related Documents 01 +1

HPF-04-02-T-S-K-TR

Active

Samtec Inc.

.200 HI POWER SOCKET ASSEMBLY

Deep-Dive with AI

DocumentsHPF Datasheet HPF Series Other Related Documents 01 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HPF-04-02-T-S-K-TR

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Material	Beryllium Copper
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	8.92 mm
Insulation Height	0.351 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Termination	Solder

HPF-04 Series

Fuse Holder HPF FUSEHOLDER

Part	Connector Type	Number of Positions Loaded	Number of Positions	Mounting Type	Termination	Number of Rows	Pitch - Mating	Pitch - Mating	Insulation Material	Features	Contact Finish - Post	Contact Shape	Insulation Height	Insulation Height	Fastening Type	Contact Type	Contact Material	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Finish - Mating
Samtec Inc. HPF-04-02-T-S-K	Receptacle	All	4	Surface Mount	Solder	1	5.08 mm	0.2 in	Liquid Crystal Polymer (LCP)	Pick and Place	Tin	Square	8.92 mm	0.351 in	Push-Pull	Female Socket	Beryllium Copper	Black
Samtec Inc. HPF-08-01-TM-S	Receptacle	All	8	Through Hole	Solder	1	5.08 mm	0.2 in	Liquid Crystal Polymer (LCP)		Tin	Square	8.92 mm	0.351 in	Push-Pull	Female Socket	Beryllium Copper	Black	0.102 in	2.6 mm
Samtec Inc. HPF-04-02-H-S-TR	Receptacle	All	4	Surface Mount	Solder	1	5.08 mm	0.2 in	Liquid Crystal Polymer (LCP)		Gold	Square	8.92 mm	0.351 in	Push-Pull	Female Socket	Beryllium Copper	Black			Gold
Samtec Inc. HPF-08-02-T-S-LC-K	Receptacle	All	8	Surface Mount	Solder	1	5.08 mm	0.2 in	Liquid Crystal Polymer (LCP)	Board Lock Pick and Place	Tin	Square	8.92 mm	0.351 in	Push-Pull	Female Socket	Beryllium Copper	Black
Samtec Inc. HPF-08-02-TM-S-LC-K	Receptacle	All	8	Surface Mount	Solder	1	5.08 mm	0.2 in	Liquid Crystal Polymer (LCP)	Board Lock Pick and Place	Tin	Square	8.92 mm	0.351 in	Push-Pull	Female Socket	Beryllium Copper	Black
Samtec Inc. HPF-04-02-H-S-LC	Receptacle	All	4	Surface Mount	Solder	1	5.08 mm	0.2 in	Liquid Crystal Polymer (LCP)		Gold	Square	8.92 mm	0.351 in	Push-Pull	Female Socket	Beryllium Copper	Black			Gold
Samtec Inc. HPF-04-02-T-S-LC	Receptacle	All	4	Surface Mount	Solder	1	5.08 mm	0.2 in	Liquid Crystal Polymer (LCP)		Tin	Square	8.92 mm	0.351 in	Push-Pull	Female Socket	Beryllium Copper	Black
Samtec Inc. HPF-04-02-H-S-K-TR	Receptacle	All	4	Surface Mount	Solder	1	5.08 mm	0.2 in	Liquid Crystal Polymer (LCP)	Pick and Place	Gold	Square	8.92 mm	0.351 in	Push-Pull	Female Socket	Beryllium Copper	Black			Gold
Samtec Inc. HPF-08-02-T-S-TR	Receptacle	All	8	Surface Mount	Solder	1	5.08 mm	0.2 in	Liquid Crystal Polymer (LCP)		Tin	Square	8.92 mm	0.351 in	Push-Pull	Female Socket	Beryllium Copper	Black
Samtec Inc. HPF-04-02-T-S-K-TR	Receptacle	All	4	Surface Mount	Solder	1	5.08 mm	0.2 in	Liquid Crystal Polymer (LCP)	Pick and Place	Tin	Square	8.92 mm	0.351 in	Push-Pull	Female Socket	Beryllium Copper	Black
