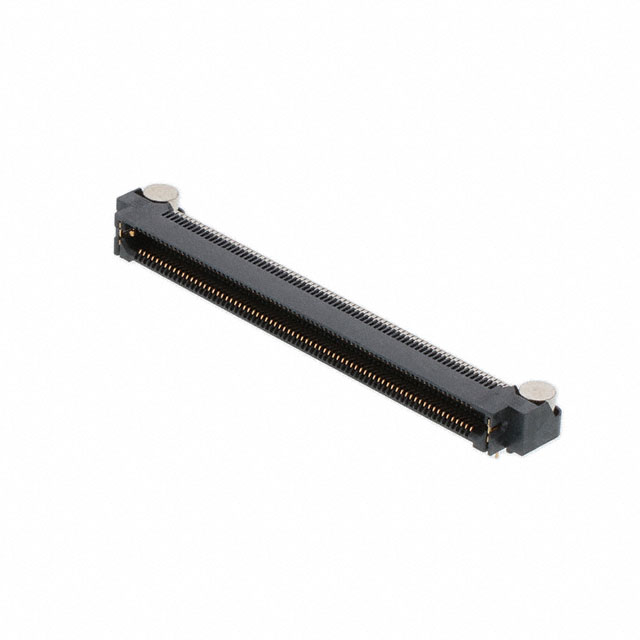

ERF8-075-01-L-D-RA-L-TR

Active

Samtec Inc.

MEZZANINE CONNECTOR, RECEPTACLE, 0.8 MM, 2 ROWS, 150 CONTACTS, SURFACE MOUNT RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsERF8 Series Other Related Documents 03 Datasheet +3

ERF8-075-01-L-D-RA-L-TR

Active

Samtec Inc.

MEZZANINE CONNECTOR, RECEPTACLE, 0.8 MM, 2 ROWS, 150 CONTACTS, SURFACE MOUNT RIGHT ANGLE

Deep-Dive with AI

DocumentsERF8 Series Other Related Documents 03 Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERF8-075-01-L-D-RA-L-TR

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide, Mounting Flange, Latches
Height Above Board	6.25 mm
Height Above Board	0.246 in
Mounting Type	Surface Mount, Right Angle
Number of Positions	150
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERF8-075 Series

Part	Height Above Board	Height Above Board	Number of Rows	Connector Type	Number of Positions	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Finish	Features	Mated Stacking Heights
Samtec Inc. ERF8-075-01-S-D-RA-TR	6.25 mm	0.246 in	2	Outer Shroud Contacts Socket	150	0.8 mm	0.031 in	0.76 Ám	30 Áin	Surface Mount Right Angle	Gold	Board Guide Mounting Flange
Samtec Inc. ERF8-075-01-S-D-RA-L-TR	6.25 mm	0.246 in	2	Outer Shroud Contacts Socket	150	0.8 mm	0.031 in	0.76 Ám	30 Áin	Surface Mount Right Angle	Gold	Board Guide Latches Mounting Flange
Samtec Inc. ERF8-075-03-S-D-RA-L-TR	6.25 mm	0.246 in	2	Outer Shroud Contacts Socket	150	0.8 mm	0.031 in	0.76 Ám	30 Áin	Surface Mount Right Angle	Gold	Board Guide Latches Mounting Flange
Samtec Inc. ERF8-075-01-S-D-EM2-TR			2	Outer Shroud Contacts Socket	150	0.8 mm	0.031 in	0.76 Ám	30 Áin	Board Edge Straddle Mount	Gold
Samtec Inc. ERF8-075-01-L-D-RA-L-TR	6.25 mm	0.246 in	2	Outer Shroud Contacts Socket	150	0.8 mm	0.031 in	0.25 Ám	10 Áin	Surface Mount Right Angle	Gold	Board Guide Latches Mounting Flange
Samtec Inc. ERF8-075-03-L-D-RA-L-TR	6.25 mm	0.246 in	2	Outer Shroud Contacts Socket	150	0.8 mm	0.031 in	0.25 Ám	10 Áin	Surface Mount Right Angle	Gold	Board Guide Latches Mounting Flange
Samtec Inc. ERF8-075-05.0-S-DV-K-TR	5.33 mm	0.21 in	2	Outer Shroud Contacts Socket	150	0.8 mm	0.031 in	0.76 Ám	30 Áin	Surface Mount	Gold	Board Guide Pick and Place	7 mm 10 mm 13 mm 14 mm 20 mm
Samtec Inc. ERF8-075-01-L-D-EM2-TR			2	Outer Shroud Contacts Socket	150	0.8 mm	0.031 in	0.25 Ám	10 Áin	Board Edge Straddle Mount	Gold
Samtec Inc. ERF8-075-05.0-S-DV-L-K-TR	5.33 mm	0.21 in	2	Outer Shroud Contacts Socket	150	0.8 mm	0.031 in	0.76 Ám	30 Áin	Surface Mount	Gold	Board Guide Latches Pick and Place	7 mm 10 mm 13 mm 14 mm 20 mm
Samtec Inc. ERF8-075-05.0-S-DV-TR	5.33 mm	0.21 in	2	Outer Shroud Contacts Socket	150	0.8 mm	0.031 in	0.76 Ám	30 Áin	Surface Mount	Gold	Board Guide	7 mm 10 mm 13 mm 14 mm 20 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 13.25
		10	$ 12.40
		25	$ 11.79
		50	$ 11.55
		100	$ 10.53
	Tape & Reel (TR)	200	$ 10.33
		400	$ 9.16
Newark	Each (Supplied on Cut Tape)	1	$ 16.55
		10	$ 15.00
		100	$ 12.50
		250	$ 11.03
		500	$ 10.74
		1000	$ 10.00

Description

General part information

ERF8-075 Series

150 Position Connector Socket, Outer Shroud Contacts Surface Mount, Right Angle Gold
