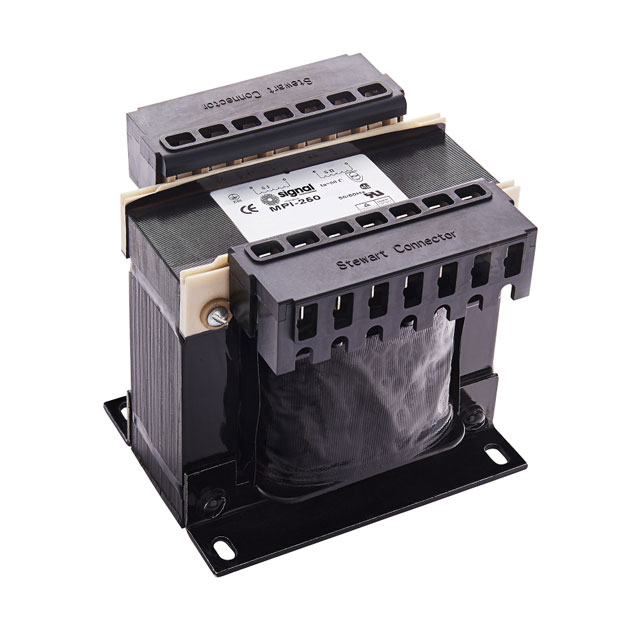

MPI-250-40

Active

Signal Transformer

POWER TRANSFORMERS 50\60 HZ, LAMINATED TRANSFORMER

Search across all available documentation for this part.

Active

Signal Transformer

POWER TRANSFORMERS 50\60 HZ, LAMINATED TRANSFORMER

Technical Specifications

Parameters and characteristics commom to parts in this series

Power Transformers 50\60 Hz, Laminated Transformer

Part	Secondary Winding(s)	Size / Dimension [x]	Size / Dimension [y]	Voltage - Primary	Power - Max [Max]	Mounting Type	Termination Style	Primary Winding(s)	Voltage - Secondary (Full Load)	Weight	Weight	Height - Seated (Max) [Max] [z]	Voltage - Isolation	Type	Current - Output (Max)	Voltage - Secondary (Full Load) [custom]	Voltage - Secondary (Full Load) [custom]
Signal Transformer MPI-250-40	Dual	104.8 mm	104.9 mm	100 V, 115 V, 200 V, 215 V, 230 V	250 VA	Chassis Mount	Terminal Block	Dual, Multiple Taps	20 V, 40 V	3.1 kg	6.8 lbs	98.2 mm	4000 Vrms	Laminated Core
Signal Transformer MPI-250-10	Dual	104.8 mm	104.9 mm	100 V, 115 V, 200 V, 215 V, 230 V	250 VA	Chassis Mount	Terminal Block	Dual, Multiple Taps		3.1 kg	6.8 lbs	98.2 mm	4000 Vrms	Laminated Core	25 A, 50 A	5 V	10 V
Signal Transformer MPI-400-40	Dual	104.8 mm	128.1 mm	100 V, 115 V, 200 V, 215 V, 230 V		Chassis Mount	Terminal Block	Dual, Multiple Taps	20 V, 40 V	4.5 kg	9.9 lbs	98.2 mm	4000 Vrms	Laminated Core	10 A, 20 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Transformers 50\60 Hz, Laminated Transformer
