Description
General part information

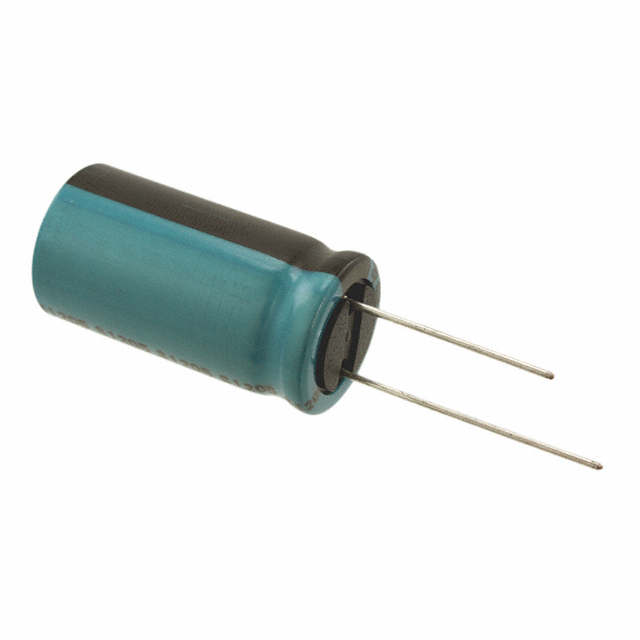

25RX302200MGC16X31.5
2200 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 130°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 25RX302200MGC16X31.5 |
|---|---|
| Applications | Automotive |
| Capacitance | 2200 ĄF |
| Height - Seated (Max) | 1.319 in |
| Impedance | 34 mOhm |
| Lead Spacing | 0.295 in |
| Lifetime | 4000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Ripple Current | 1.84 A, 2.3 A |
| Size / Dimension Diameter | 0.63 in |
| Tolerance | 20 % |
| Voltage - Rated | 25 VAC |
