STEVAL-QUADV01

Active

STMicroelectronics

POWER MANAGEMENT EVALUATION BOARD BASED ON THE STEP DOWN REGULATORS L6981, L7983, ST1PS03, AND THE ST730 LDO

Deep-Dive with AI

Search across all available documentation for this part.

Documents +4

STEVAL-QUADV01

Active

STMicroelectronics

POWER MANAGEMENT EVALUATION BOARD BASED ON THE STEP DOWN REGULATORS L6981, L7983, ST1PS03, AND THE ST730 LDO

Deep-Dive with AI

Documents +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	STEVAL-QUADV01	STEVAL-QUADV01 Series

	-	-
Board Type	Fully Populated	Fully Populated
Current - Output	1.5 A, 400 mA, 300 mA	1.5 - 400 A
Main Purpose	DC/DC, Step Down with LDO	DC/DC, Step Down with LDO
Outputs and Type	4	4
Outputs and Type	Non-Isolated	Non-Isolated
Regulator Topology	Buck	Buck
Supplied Contents	Board(s)	Board(s)
Utilized IC / Part	L7983, ST730, L6981, ST1PS03	L7983, ST730, L6981, ST1PS03

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 27.25
Digikey	Bulk	1	$ 27.60
Newark	Each	1	$ 30.44

STEVAL-QUADV01 Series

Power management evaluation board based on the stepdown regulators L6981,L7983, ST1PS03, and the ST730 LDO

Part	Outputs and Type	Outputs and Type	Supplied Contents	Main Purpose	Current - Output	Regulator Topology	Board Type	Utilized IC / Part
STMicroelectronics STEVAL-QUADV01
STMicroelectronics STEVAL-QUADV01	4	Non-Isolated	Board(s)	DC/DC, Step Down with LDO	1.5 A, 300 mA, 400 mA	Buck	Fully Populated	L6981, L7983, ST1PS03, ST730
STMicroelectronics STEVAL-QUADV01
STMicroelectronics STEVAL-QUADV01

Description

General part information

STEVAL-QUADV01 Series

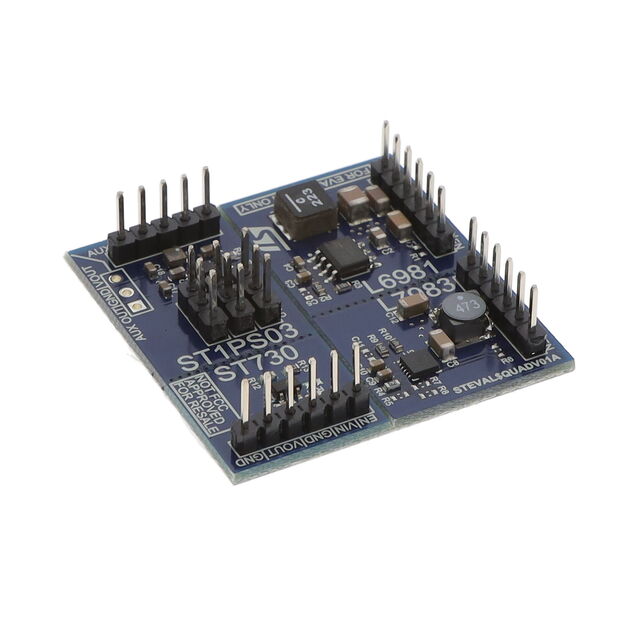

The STEVAL-QUADV01 evaluation board is based on the L6981 (capable of delivering up to 1.5 A DC), the L7983 (capable of delivering up to 300 mA DC), the ST1PS03 (capable of delivering up to 400 mA DC) synchronous monolithic step-down regulators, and the ST730 (capable of delivering up to 300 mA DC) LDO regulator.

The combination of input voltage and output current ranges, and other embedded features makes the evaluation tool suitable for a broad range of applications.
