Description

General part information

EVL28162-C-00A

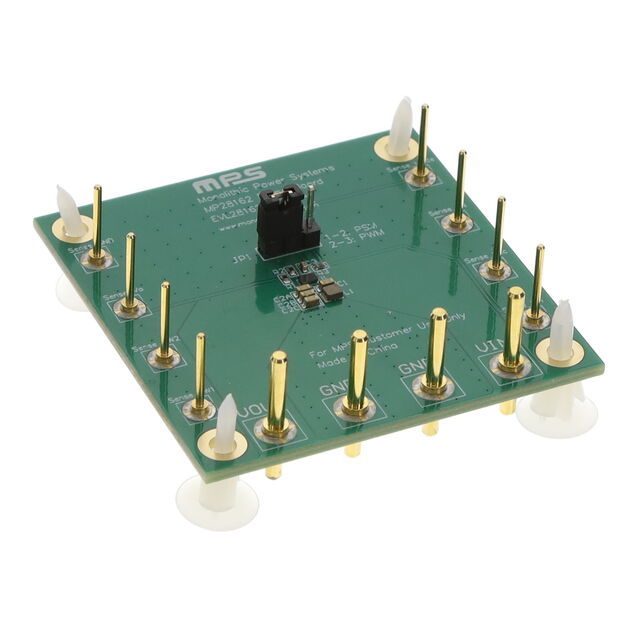

MP28162 - DC/DC, Step Up or Down 1, Non-Isolated Outputs Evaluation Board

Technical Specifications

Parameters and characteristics for this part

SpecificationEVL28162-C-00A
Board TypeFully Populated
ContentsBoard
Current - Output1.3 A
Frequency - Switching2 MHz
Main PurposeStep Up or Down, DC/DC
Non-Isolated Output Count1 count
Output TypeNon-Isolated
Regulator TopologyBuck-Boost
Supplied ContentsBoard(s)
Total Output Count1
Utilized IC / PartMP28162
Voltage - Input (Maximum)5.5 V
Voltage - Input (Minimum)1.8 V
Voltage - Output (Max)5.5 V
Voltage - Output (Min)1.2 V
