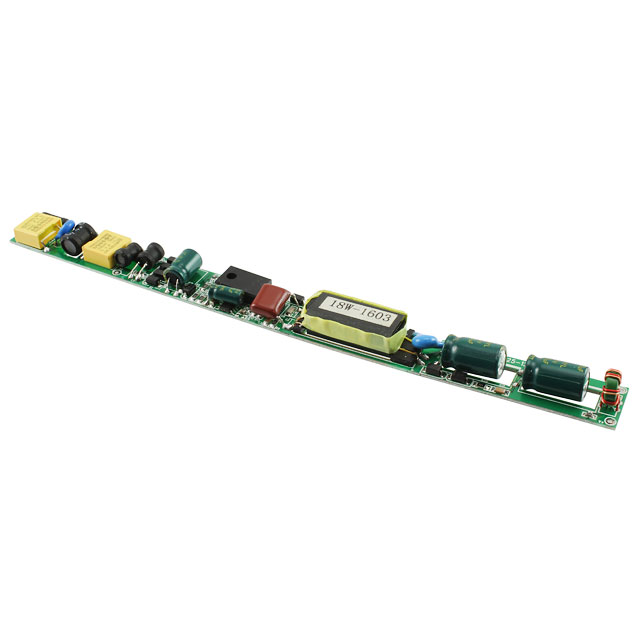

FT825-12S480MA

Active

Fremont Micro Devices Ltd

LED DRIVER CC AC/DC 25-42V 480MA

Search across all available documentation for this part.

Active

Fremont Micro Devices Ltd

LED DRIVER CC AC/DC 25-42V 480MA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FT825-12S480MA	FT825 Series

Applications	-	Lighting
Approval Agency	EN, IEC	EN, IEC
Current - Output (Max) [Max]	480 mA	480 mA
Efficiency	88 %	88 %
Internal Switch(s)	-	False
Mounting Type	Chassis Mount	Chassis Mount, Surface Mount
Number of Outputs	1	1
Operating Temperature	-	-40 °C
Operating Temperature	-	125 °C
Package / Case	-	8-SOIC
Package / Case	-	3.9 mm
Package / Case	-	0.154 in
Power (Watts)	18 W	18 W
Size / Dimension [x]	8.5 in	8.5 in
Size / Dimension [x]	216 mm	216 mm
Size / Dimension [y]	0.69 "	0.69 "
Size / Dimension [y]	17.5 mm	17.5 mm
Size / Dimension [z]	0.39 in	0.39 in
Size / Dimension [z]	10 mm	10 mm
Supplier Device Package	-	8-SOP
Termination Style	Connector	Connector
Topology	AC DC Converter	AC DC Converter
Type	Constant Current	Constant Current, AC DC Offline Switcher
Voltage - Input (Max) [Max]	264 VAC	264 VAC
Voltage - Input (Min) [Min]	90 VAC	90 VAC
Voltage - Output [Max]	42 V	42 V
Voltage - Output [Min]	25 V	25 V
Voltage - Supply (Max)	-	20 V

LED DRIVER CC AC/DC 25-42V 480MA

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Voltage - Input (Max) [Max]	Mounting Type	Topology	Voltage - Output [Max]	Voltage - Output [Min]	Termination Style	Approval Agency	Current - Output (Max) [Max]	Type	Efficiency	Number of Outputs	Voltage - Input (Min) [Min]	Package / Case	Package / Case [y]	Package / Case [x]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply (Max) [Max]	Supplier Device Package	Applications	Internal Switch(s)
Fremont Micro Devices Ltd FT825-12S480MA	0.39 in	8.5 in	0.69 "	17.5 mm	216 mm	10 mm	18 W	264 VAC	Chassis Mount	AC DC Converter	42 V	25 V	Connector	EN, IEC	480 mA	Constant Current	88 %	1	90 VAC
Fremont Micro Devices Ltd FT825-RT									Surface Mount							AC DC Offline Switcher		1		8-SOIC	3.9 mm	0.154 in	-40 °C	125 °C	20 V	8-SOP	Lighting

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

480mA 25 ~ 42V Constant Current LED Driver AC DC Converter Topology 1 Output
