Description
General part information
HS100 1K F

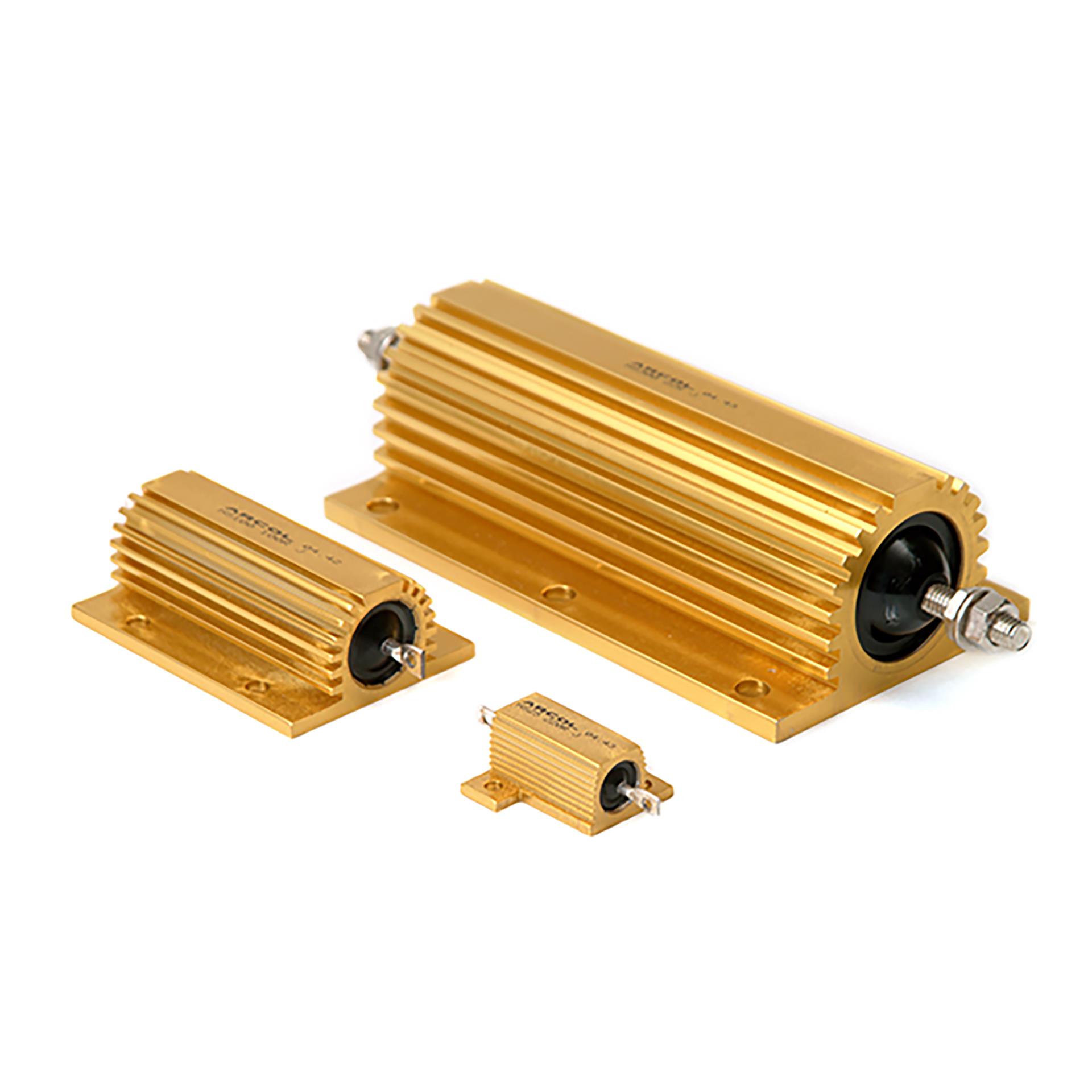

1 kOhms ±1% 100W Wirewound Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | HS100 1K F |
|---|---|
| Coating | Aluminum |
| Composition | Wirewound |
| Features | Pulse Withstanding |
| Height - Seated (Max) | 0.949 in |
| Housing Type | Aluminum |
| Lead Style | Solder Lugs |
| Mounting Feature | Flanges |
| Package / Case | Box, Axial |
| Power (Watts) | 100 W |
| Resistance | 1 kOhm |
| Size / Dimension Length | 2.567 in |
| Size / Dimension Width | 1.87 in, 1.075 in |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 1 % |
