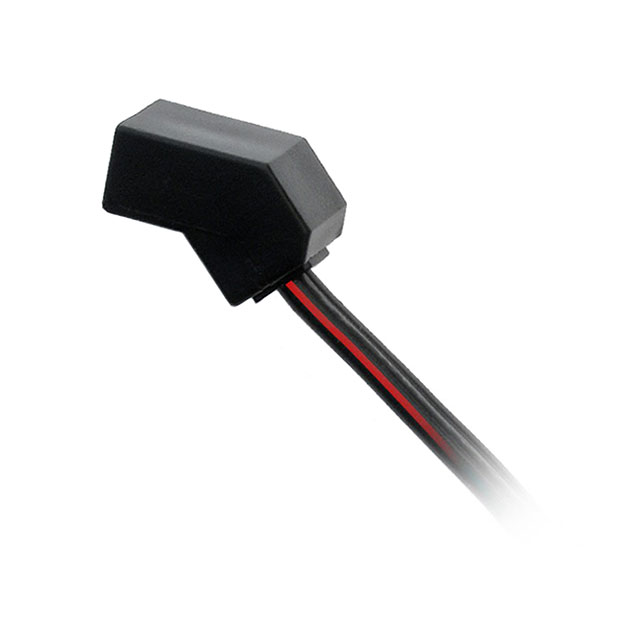

HP75-24R

Active

Gardtec Incorporated

RED TRACER DC FAN CORD 24" 18/2

Search across all available documentation for this part.

Active

Gardtec Incorporated

RED TRACER DC FAN CORD 24" 18/2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Power Cord Fan Terminal Receptacle 45° 24.0" (609.6mm) Cut End

Technical documentation and resources

Specification	HP75-24R	HP75 Series

1st Connector	Fan Terminal Receptacle 45°	Fan Terminal Receptacle 45°
2nd Connector	Cut End	Cut End, NEMA 1-15 Plug
Approval Agency Marking	cURus	cURus
Cord Type	SPT-1	SPT-1
Features	-	Thumbwheel
Length	-	1.83 - 91.44 cm
Length	-	36 - 72 in
Length [x]	609.6 mm	609.6 mm
Length [x]	24 in	24 in
Number of Conductors	2	2
Operating Temperature	105 C	105 C
Style	Female Receptacle to Cable	Female Receptacle to Cable, Female Receptacle to Male Plug
Voltage Rating	300 VDC	300 VDC

Part	Approval Agency Marking	Cord Type	Number of Conductors	1st Connector	Style	Length [x]	Length [x]	2nd Connector	Voltage Rating	Operating Temperature	Length	Length	Features
Gardtec Incorporated HP75-24R	cURus	SPT-1	2	Fan Terminal Receptacle 45°	Female Receptacle to Cable	609.6 mm	24 in	Cut End	300 VDC	105 C
Gardtec Incorporated HP75-36R	cURus	SPT-1	2	Fan Terminal Receptacle 45°	Female Receptacle to Cable			Cut End	300 VDC	105 C	91.44 cm	36 in
Gardtec Incorporated HP75-36P	cURus	SPT-1	2	Fan Terminal Receptacle 45°	Female Receptacle to Male Plug			NEMA 1-15 Plug	300 VDC	105 C	91.44 cm	36 in
Gardtec Incorporated HP75-72PS	cURus	SPT-1	2	Fan Terminal Receptacle 45°	Female Receptacle to Male Plug			NEMA 1-15 Plug	300 VDC	105 C	1.83 m	72 in	Thumbwheel
