ATMR1/4
ActiveMersen USA Newburyport-MA L.L.C.
FUSE; FAST-ACTING; CLASS CC; 200
ATMR1/4
ActiveMersen USA Newburyport-MA L.L.C.
FUSE; FAST-ACTING; CLASS CC; 200
Description
General part information

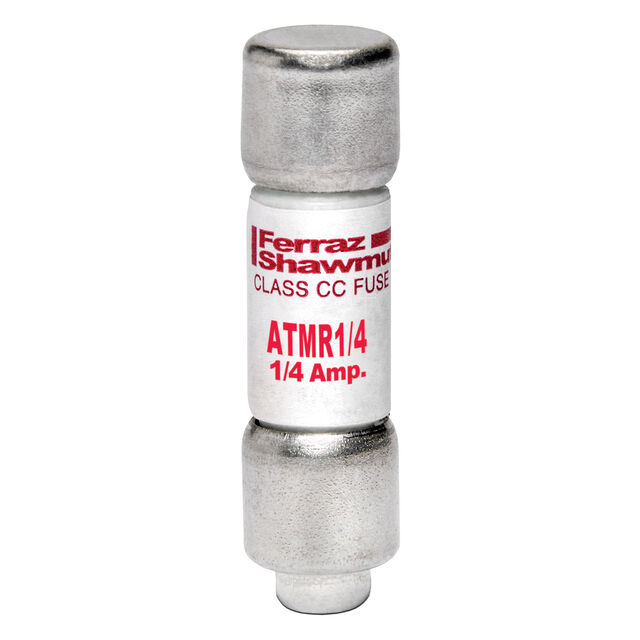

ATMR1/4
250mA 600 VAC 600 VDC Fuse Cartridge Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | ATMR1/4 |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | UL, CSA |
| Breaking Capacity (AC) | 200 kA |
| Breaking Capacity (DC) | 100 kA |
| Class | CC |
| Current Rating | 0.25 A |
| Fuse Type | Cartridge |
| Mounting Type | Requires Holder |
| Package / Case | 5AG, 10mm x 38.1mm |
| Package Diameter | 10 mm, 38.1 mm |
| Package Length | 10 mm |
| Package Name | 5AG |
| Package Width | 38.1 mm |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 0.409 in |
| Size / Dimension Length | 1.5 in |
| Voltage Rating - AC | 600 VAC |
| Voltage Rating - DC | 600 V |
