X-STM32MP-MSP01
ActiveSTM32MP EXPANSION BOARD FOR MOTION MEMS, ENVIRONMENTAL, TOF, AND ALS SENSOR APPLICATIONS
Deep-Dive with AI
Search across all available documentation for this part.
X-STM32MP-MSP01
ActiveSTM32MP EXPANSION BOARD FOR MOTION MEMS, ENVIRONMENTAL, TOF, AND ALS SENSOR APPLICATIONS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | X-STM32MP-MSP01 | X-STM32MP-MSP01 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Function | Light, Pressure, Magnetometer, Temperature, Gyroscope, Accelerometer, 3D Time-of-Flight (ToF) | Light, Pressure, Magnetometer, Temperature, Gyroscope, Accelerometer, 3D Time-of-Flight (ToF) |
| Platform | Discovery | Discovery |
| Type | Sensor | Sensor |
| Utilized IC / Part | VD6283TX, VL53L5CX, IIS2MDC, IIS2DLPC, STTS22H, ISM330DHCX, LPS22HH | VD6283TX, VL53L5CX, IIS2MDC, IIS2DLPC, STTS22H, ISM330DHCX, LPS22HH |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
X-STM32MP-MSP01 Series
STM32MP expansion board for motion MEMS, environmental, ToF, and ALS sensor applications
| Part | Contents | Utilized IC / Part | Type | Function | Platform |
|---|---|---|---|---|---|
STMicroelectronics X-STM32MP-MSP01 | Board(s) | IIS2DLPC, IIS2MDC, ISM330DHCX, LPS22HH, STTS22H, VD6283TX, VL53L5CX | Sensor | 3D Time-of-Flight (ToF), Accelerometer, Gyroscope, Light, Magnetometer, Pressure, Temperature | Discovery |
STMicroelectronics X-STM32MP-MSP01 | |||||
STMicroelectronics X-STM32MP-MSP01 |
Description
General part information
X-STM32MP-MSP01 Series

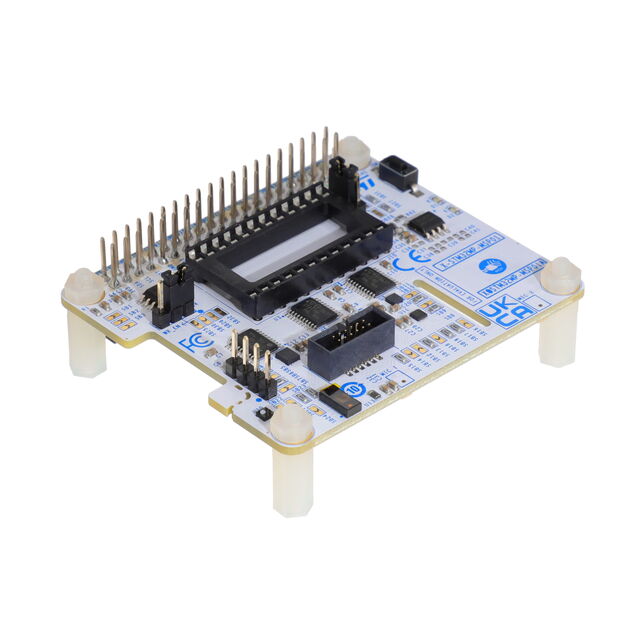

The X-STM32MP-MSP01 is a multisensor evaluation board that embeds motion MEMS, environmental, ambient light and Time-of-Flight sensors, a digital microphone, and an NFC tag. This board works with the STM32MPU discovery kit. It can be used with the X-LINUX-MSP1 to read the sensors.
The X-STM32MP-MSP01 main devices are the ISM330DHCX 3-axis accelerometer and gyroscope, the IIS2MDC 3-axis magnetometer, and the LPS22HH MEMS nano pressure sensor.
The board also includes the STTS22H digital temperature sensor, the VD6283TX ambient light sensor, the IIS2DLPC 3-axis accelerometer, the VL53L5CX multizone ranging sensor, and the MP23DB02MM digital MEMS microphone. The on-board dynamic NFC/RFID tag IC can work with a dual interface for the I²C, through a 13.56 MHz RFID reader, or via an NFC phone.
