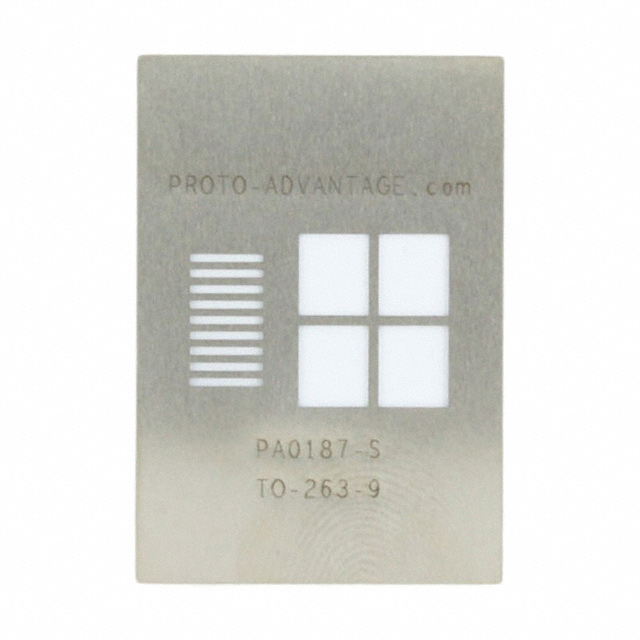

PA0187-S
ActiveChip Quik Inc.
TO-263-9 STENCIL
PA0187-S
ActiveChip Quik Inc.
TO-263-9 STENCIL
Description
General part information
PA0187-S
TO-263-9 STENCIL
Technical Specifications
Parameters and characteristics for this part
| Specification | PA0187-S |
|---|---|
| Inner Dimension Length | 0.4 in |
| Inner Dimension Width | 0.39 in |
| Material | Stainless Steel |
| Number of Positions | 9 |
| Outer Dimension Length | 1.3 in |
| Outer Dimension Width | 0.9 in |
| Pitch | 0.038 in |
| Thermal Center Pad Length | 0.427 in |
| Thermal Center Pad Width | 0.37 in |
| Thickness | 0.004 in |
| Type | TO/DDPAK |
