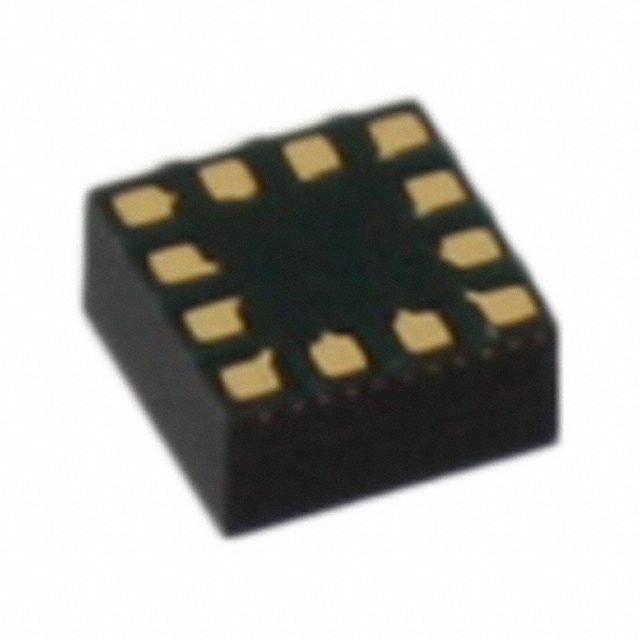

BMA222E

Obsolete

Bosch Sensortec

ACCEL 2-16G I2C/SPI 12LGA

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

ACCEL 2-16G I2C/SPI 12LGA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Accelerometer X, Y, Z Axis ±2g, 4g, 8g, 16g 8Hz ~ 1kHz 12-LGA (2x2)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	BMA222E	BMA222 Series

Acceleration Range	4 g, 16 g, 8 g	4 - 16 g
Acceleration Range [Max]	2 g	2 g
Acceleration Range [Min]	-2 g	-2 g
Axis [x]	X	X
Axis [y]	Y	Y
Axis [z]	Z	Z
Bandwidth [Max]	1 kHz	1 kHz
Bandwidth [Min]	8 Hz	8 Hz
Contents	-	Board(s)
Features	Selectable Low Pass Filter, Selectable Scale, Temperature Sensor, Adjustable Bandwidth	Sleep Mode, Selectable Low Pass Filter, Adjustable Bandwidth, Selectable Scale, Temperature Sensor
Function	-	Accelerometer
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	I2C, SPI	I2C, SPI
Package / Case	12-VFLGA	12-VFLGA
Sensitivity (LSB/g)	8 LSB/g, 64 LSB/g	8 - 64 LSB/g
Supplier Device Package	12-LGA (2x2)	12-LGA (2x2)
Type	Digital	Digital, Sensor
Utilized IC / Part	-	BMA222E
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.62 V	1.62 V

ACCEL 2-16G I2C/SPI 12LGA

Part	Output Type	Acceleration Range	Acceleration Range [Min]	Acceleration Range [Max]	Sensitivity (LSB/g)	Supplier Device Package	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Axis [z]	Axis [y]	Axis [x]	Package / Case	Features	Operating Temperature [Max]	Operating Temperature [Min]	Type	Bandwidth [Min]	Bandwidth [Max]	Utilized IC / Part	Function	Contents
Bosch Sensortec BMA222	I2C, SPI	4 g, 8 g, 16 g	-2 g	2 g	8 LSB/g, 64 LSB/g	12-LGA (2x2)	Surface Mount	3.6 V	1.62 V	Z	Y	X	12-VFLGA	Adjustable Bandwidth, Selectable Low Pass Filter, Selectable Scale, Sleep Mode, Temperature Sensor	85 °C	-40 °C	Digital	8 Hz	1 kHz
Bosch Sensortec BMA222E	I2C, SPI	4 g, 8 g, 16 g	-2 g	2 g	8 LSB/g, 64 LSB/g	12-LGA (2x2)	Surface Mount	3.6 V	1.62 V	Z	Y	X	12-VFLGA	Adjustable Bandwidth, Selectable Low Pass Filter, Selectable Scale, Temperature Sensor	85 °C	-40 °C	Digital	8 Hz	1 kHz
Bosch Sensortec BMA222E-SHUTL																	Sensor			BMA222E	Accelerometer	Board(s)
