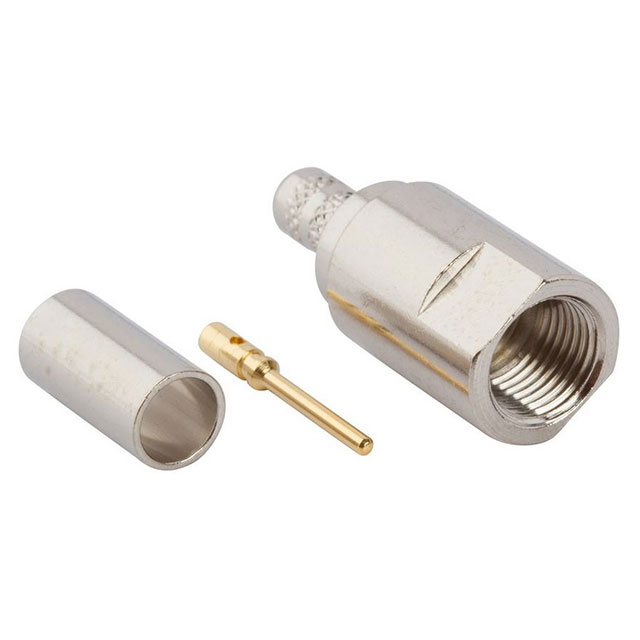

081-169

Active

Amphenol RF

CONN FME PLUG STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN FME PLUG STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	081-169

Body Finish	Nickel
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	FME
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	200 MHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp

Part	Center Contact Plating	Connector Type	Impedance	Dielectric Material	Body Finish	Includes	Number of Ports	Cable Group	Mating Cycles	Connector Style	Mounting Type	Housing Color	Contact Termination	Shield Termination	Center Contact Material	Body Material	Frequency - Max [Max]
Amphenol RF 081-169	Gold	Male Pin Plug	50 Ohms	Polytetrafluoroethylene (PTFE)	Nickel	1 Connector 1 Contact 1 Ferrule	1	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	500	FME	Free Hanging (In-Line)	Silver	Crimp	Crimp	Brass	Brass	200 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

FME Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
