9891 006100

Active

Belden Inc.

MULTI-PAIR 8COND 20/22AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 8COND 20/22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9891 006100

Cable Type	Multi-Pair
Conductor Insulation	Foam High Density Polyethylene (FHDPE), Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand	30, 7 Strands, 28 AWG (2)
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	8.03 mm
Jacket (Insulation) Diameter [diameter]	0.316 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Blue
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	8
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2919
Shield Coverage	95 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Wire Gauge	22, 20

Part	Conductor Strand	Wire Gauge	Length [x]	Length [x]	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Conductor Insulation	Shield Material	Shield Type	Jacket (Insulation) Material	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Cable Type	Number of Conductors	Features
Belden Inc. 9891 006100	7 Strands 28 AWG (2) 30	20 22	30.5 m	100 ft	95 % 100 %	8.03 mm	0.316 "	UL Style 2919	Foam High Density Polyethylene (FHDPE) Poly-Vinyl Chloride (PVC)	Aluminum Copper Tinned	Braid Foil	Poly-Vinyl Chloride (PVC)	Blue	-20 C	80 C	Copper Tinned	Multi-Pair	8	Drain Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

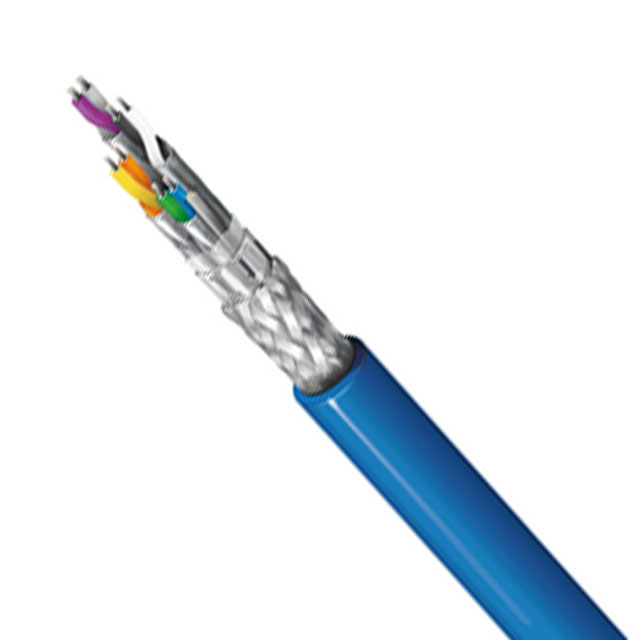

8 (4 Pair Twisted) Conductor Multi-Pair Cable Blue 20 AWG, 22 AWG Foil, Braid 100.0' (30.5m)
