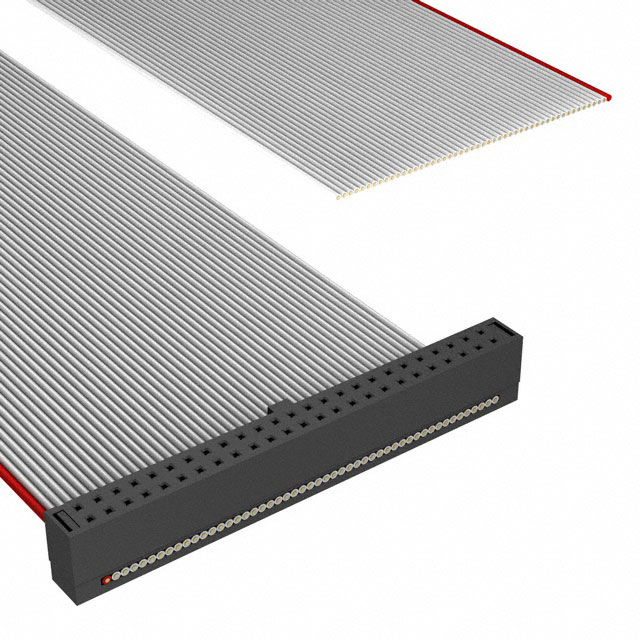

Specification	TCSD-25-S-06.00-01-N

Cable Termination	IDC
Color	Gray, Ribbon
Connector Type	Socket to Cable
Contact Finish	Gold
Contact Finish Thickness	30 µin
Features	Polarizing Key
Length	0.5 ft
Number of Positions	50
Number of Rows	2
Pitch - Cable	0.039 in
Pitch - Connector	0.079 in
Shielding	Unshielded

TCSD-25 Series

...

Part	Color	Shielding	Number of Rows	Pitch - Cable	Number of Positions	Pitch - Connector	Connector Type	Cable Termination	Contact Finish Thickness	Length	Contact Finish	Features	Pitch	Row Spacing	Fastening Type	Mounting Type	Contact Finish Thickness (string set options)	Contact Finish Thickness	Wire Gauge	Contact Type	Wire Type
Samtec Inc. TCSD-16-D-18.00-01	Gray Ribbon	Unshielded	2	0.039 in	32	0.079 in	Socket to Socket	IDC	30 µin	1.5 ft	Gold
Samtec Inc. TCSD-16-S-06.00-01	Gray Ribbon	Unshielded	2	0.039 in	32	0.079 in	Socket to Cable	IDC	30 µin	0.5 ft	Gold
Samtec Inc. TCSD-16-D-06.50-01-N	Gray Ribbon	Unshielded	2	0.039 in	32	0.079 in	Socket to Socket	IDC	30 µin	0.542 ft	Gold	Polarizing Key
Samtec Inc. TCSD-16-D-20.00-01	Gray Ribbon	Unshielded	2	0.039 in	32	0.079 in	Socket to Socket	IDC	30 µin	1.67 ft	Gold
Samtec Inc. TCSD-16-01-F-N	Black		2		32		Receptacle	IDC	0		Gold	Feed Through Polarizing Key	0.079 in	0.079 in	Push-Pull	Free Hanging (In-Line)	Flash	Flash	28 AWG	Female Socket	Ribbon Cable
Samtec Inc. TCSD-16-S-12.00-01-N	Gray Ribbon	Unshielded	2	0.039 in	32	0.079 in	Socket to Cable	IDC	30 µin	12 in	Gold	Polarizing Key
Samtec Inc. TCSD-16-S-09.00-01	Gray Ribbon	Unshielded	2	0.039 in	32	0.079 in	Socket to Cable	IDC	30 µin	0.75 ft	Gold
Samtec Inc. TCSD-16-S-24.00-01-F-SR	Gray Ribbon	Unshielded	2	0.039 in	32	0.079 in	Socket to Cable	IDC	0	24 in	Gold	Strain Relief					Flash	Flash
Samtec Inc. TCSD-16-01-N	Black		2		32		Receptacle	IDC	30 µin		Gold	Feed Through Polarizing Key	0.079 in	0.079 in	Push-Pull	Free Hanging (In-Line)			28 AWG	Female Socket	Ribbon Cable
Samtec Inc. TCSD-16-01-F	Black		2		32		Receptacle	IDC	0		Gold	Feed Through	0.079 in	0.079 in	Push-Pull	Free Hanging (In-Line)	Flash	Flash	28 AWG	Female Socket	Ribbon Cable
