NTCG103JF103JT1S
ActiveTDK Corporation
THERMISTOR, NTC, 3435K, 10KOHM ROHS COMPLIANT: YES
NTCG103JF103JT1S
ActiveTDK Corporation
THERMISTOR, NTC, 3435K, 10KOHM ROHS COMPLIANT: YES
Description
General part information
NTCG103JF103JT1S

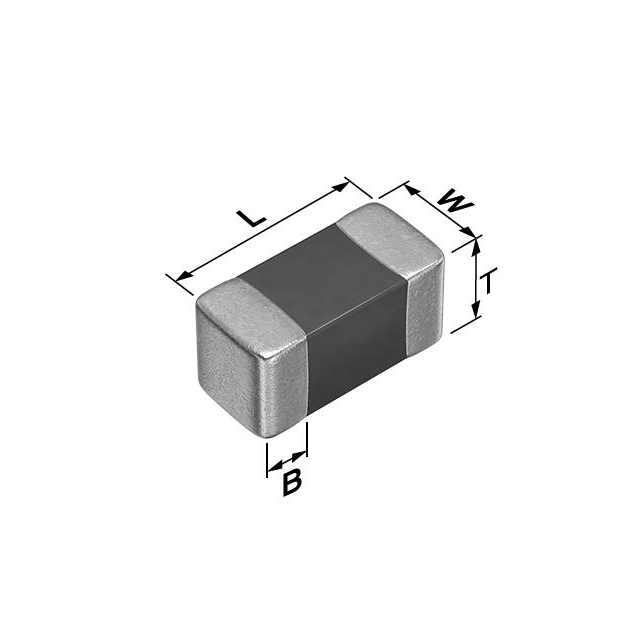

NTC Thermistor 10k 0402 (1005 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | NTCG103JF103JT1S |
|---|---|
| B Value (25/85) | 3435 K |
| B Value Tolerance | 1 % |
| B25/50 | 3380 K |
| B25/75 | 3422 K |
| Beta (B25/100) | 3453 K |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0402 (1005 Metric) |
| Power - Max | 100 mW |
| Qualification | AEC-Q200 |
| Resistance (Ohms) | 10 kOhm |
| Resistance Tolerance (%) | 5 % |
