14-438.036K
ActiveEAO

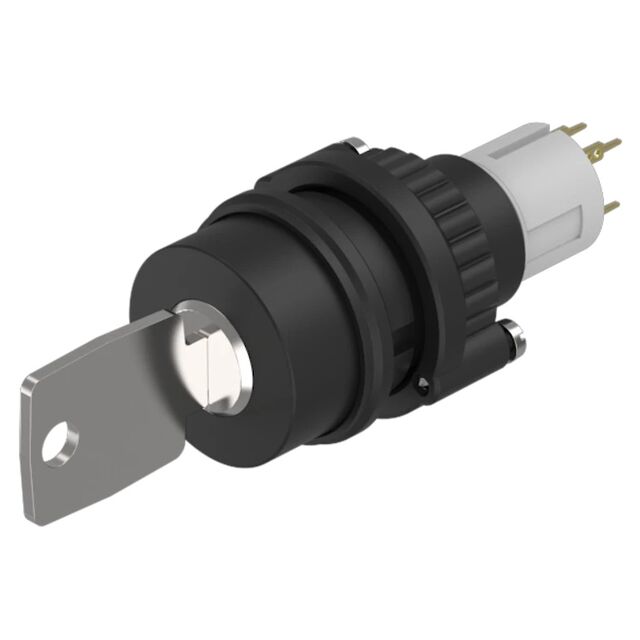

SWITCH KEYLK 2POS DPST 100MA 42V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
14-438.036K
ActiveEAO
SWITCH KEYLK 2POS DPST 100MA 42V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 14-438.036K |
|---|---|
| Actuator Type | Flat Key |
| Angle of Throw | 42 ° |
| Circuit | DPST-NO/NC |
| Contact Timing | Not Specified |
| Current Rating (Amps) | 100 mA |
| Depth Behind Flange | 41.5 mm |
| Features | IP65 |
| Key Removable Positions | 1 only |
| Mechanical Life | 2000000 Cycles |
| Number of Positions | 2 |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 22.3 mm |
| Switch Function | Off-Mom, On-Mom |
| Termination Style | PC Pin, Solder Lug |
| Voltage Rating - AC | 42 V |
| Voltage Rating - DC | 42 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 94.31 | |
| 10 | $ 85.93 | |||
| 25 | $ 80.16 | |||
| 50 | $ 77.02 | |||
| 100 | $ 71.78 | |||
14-438 Series
SWITCH KEYLK 2POS DPST 100MA 42V
| Part | Actuator Type | Depth Behind Flange | Circuit | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Switch Function | Voltage Rating - DC | Contact Timing | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Features | Voltage Rating - AC | Angle of Throw | Number of Positions | Key Removable Positions | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 14-438.036K | Flat Key | 41.5 mm | DPST-NO/NC | 22.3 mm | 100 mA | Off-Mom, On-Mom | 42 V | Not Specified | 55 °C | -25 °C | PC Pin, Solder Lug | IP65 | 42 V | 42 ° | 2 | 1 only | 2000000 Cycles |
Description
General part information
14-438 Series
Keylock Switch 2 Position DPST-NO/NC 100mA (AC/DC) 42 VAC 42 VDC Panel Mount
