1839321
ActivePhoenix Contact
HEADER NOMINAL CURRENT: 6 A RATE
1839321
ActivePhoenix Contact
HEADER NOMINAL CURRENT: 6 A RATE
Description
General part information
1839321

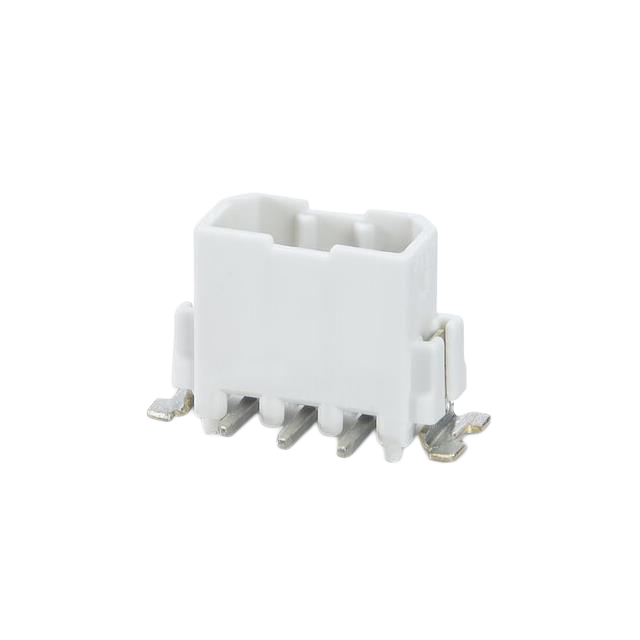

8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.098" (2.50mm) Vertical Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 1839321 |
|---|---|
| Color | White |
| Contact Mating Finish | Tin |
| Current - IEC | 6 A |
| Current - UL | 5 A |
| Features | Solder Retention |
| Header Orientation | Vertical |
| Insulation Height | 0.295 in |
| Mounting Type | Surface Mount |
| Number of Levels | 1 |
| Number of Positions | 8 |
| Pitch | 0.098 in |
| Positions Per Level | 8 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - IEC | 160 V |
| Voltage - UL | 150 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
