BVS-A-R002-1.0
ActiveIsabellenhuette USA

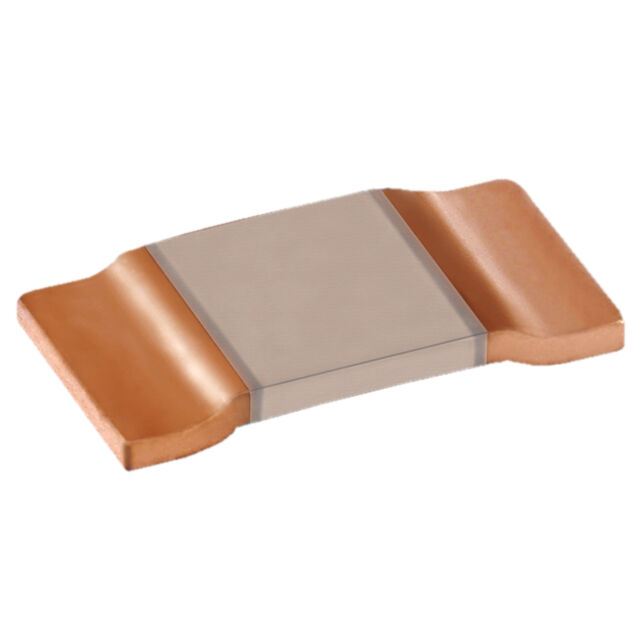

RESISTOR - ISA-WELD SHUNT, 0.002
BVS-A-R002-1.0
ActiveIsabellenhuette USA
RESISTOR - ISA-WELD SHUNT, 0.002
Description
General part information
BVS-A-R002-1.0
2 mOhms ±1% 6W Chip Resistor 3920 (1052 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant
Technical Specifications
Parameters and characteristics for this part
| Specification | BVS-A-R002-1.0 |
|---|---|
| Features | Moisture Resistant, Automotive AEC-Q200, Current Sense |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | 3920 (1052 Metric) |
| Package Name | 3920 |
| Power (Watts) | 6 W |
| Ratings | AEC-Q200 |
| Resistance | 2 mOhms |
| Size / Dimension Length | 0.394 in |
| Size / Dimension Width | 0.205 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
