HEN.1F.305.XLNP

Active

LEMO

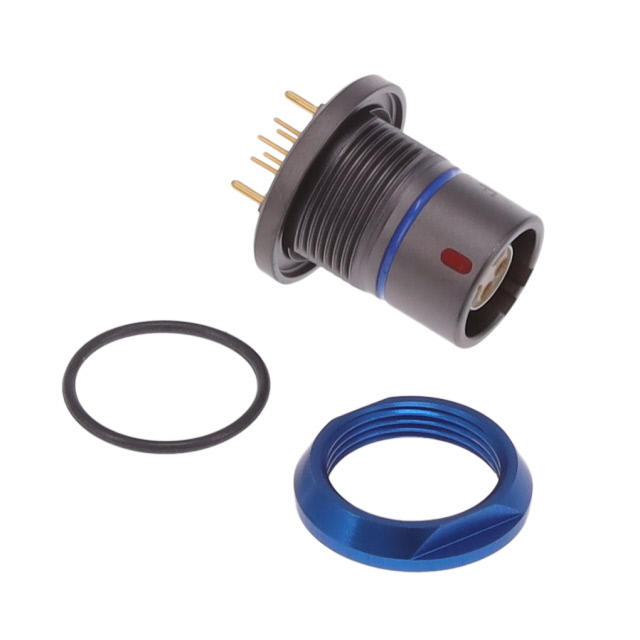

CONN RCPT FMALE 5POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HEN.1F.305.XLNP

Active

LEMO

CONN RCPT FMALE 5POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 55.72
		10	$ 51.13
		25	$ 49.16
		50	$ 47.52
		100	$ 44.90

Description

General part information

HEN.1F Series

5 Position Circular Connector Receptacle, Female Sockets Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HEN.1F.305.XLNP	HEN.1F Series

Applications	Aerospace	Aerospace
Color	Gray	Gray
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	9 A	5 - 12 A
Fastening Type	Push-Pull	Push-Pull
Features	Potted	Potted
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	-	7 - 8
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-15 °C	-15 °C
Orientation	N	N
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	305	303 - 308
Shielding	Shielded	Shielded
Termination	Solder	Solder

HEN.1F Series

CONN RCPT FMALE 3POS GOLD SOLDER

Part	Contact Finish - Mating	Primary Material	Mounting Type	Material Flammability Rating	Insert Material	Current Rating (Amps)	Termination	Mounting Feature	Orientation	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Shell Size - Insert	Shielding	Features	Fastening Type	Color	Ingress Protection	Shell Material	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Shell Finish	Number of Positions
LEMO HEN.1F.303.XLVP	Gold	Metal	Panel Mount, Right Angle, Through Hole	UL94 V-0	Polyetheretherketone (PEEK)	12 A	Solder	Bulkhead - Front Side Nut	N	Receptacle, Female Sockets	59 Áin	1.5 Ám	Bronze	303	Shielded	Potted	Push-Pull	Gray	IP68 - Dust Tight, Waterproof	Aluminum Alloy	Aerospace	100 °C	-15 °C	Nickel
LEMO HEN.1F.308.XLNP	Gold	Metal	Panel Mount, Through Hole	UL94 V-0	Polyetheretherketone (PEEK)	5 A	Solder	Bulkhead - Front Side Nut	N	Receptacle, Female Sockets	59 Áin	1.5 Ám	Bronze	308	Shielded	Potted	Push-Pull	Gray	IP68 - Dust Tight, Waterproof	Aluminum Alloy	Aerospace	100 °C	-15 °C	Nickel	8
LEMO HEN.1F.307.XLNP	Gold	Metal	Panel Mount, Through Hole	UL94 V-0	Polyetheretherketone (PEEK)	7 A	Solder	Bulkhead - Front Side Nut	N	Receptacle, Female Sockets	59 Áin	1.5 Ám	Bronze	307	Shielded	Potted	Push-Pull	Gray	IP68 - Dust Tight, Waterproof	Aluminum Alloy	Aerospace	100 °C	-15 °C	Nickel	7
LEMO HEN.1F.303.XLNP	Gold	Metal	Panel Mount, Through Hole	UL94 V-0	Polyetheretherketone (PEEK)	12 A	Solder	Bulkhead - Front Side Nut	N	Receptacle, Female Sockets	59 Áin	1.5 Ám	Bronze	303	Shielded	Potted	Push-Pull	Gray	IP68 - Dust Tight, Waterproof	Aluminum Alloy	Aerospace	100 °C	-15 °C	Nickel
LEMO HEN.1F.305.XLNP	Gold	Metal	Panel Mount, Through Hole	UL94 V-0	Polyetheretherketone (PEEK)	9 A	Solder	Bulkhead - Front Side Nut	N	Receptacle, Female Sockets	59 Áin	1.5 Ám	Bronze	305	Shielded	Potted	Push-Pull	Gray	IP68 - Dust Tight, Waterproof	Aluminum Alloy	Aerospace	100 °C	-15 °C	Nickel
LEMO HEN.1F.308.XLVP	Gold	Metal	Panel Mount, Right Angle, Through Hole	UL94 V-0	Polyetheretherketone (PEEK)	5 A	Solder	Bulkhead - Front Side Nut	N	Receptacle, Female Sockets	59 Áin	1.5 Ám	Bronze	308	Shielded	Potted	Push-Pull	Gray	IP68 - Dust Tight, Waterproof	Aluminum Alloy	Aerospace	100 °C	-15 °C	Nickel	8
