11075
ActiveKeystone Electronics
CONN PC PIN CIRC 0.040DIA TIN
11075
ActiveKeystone Electronics
CONN PC PIN CIRC 0.040DIA TIN
Description
General part information
11075

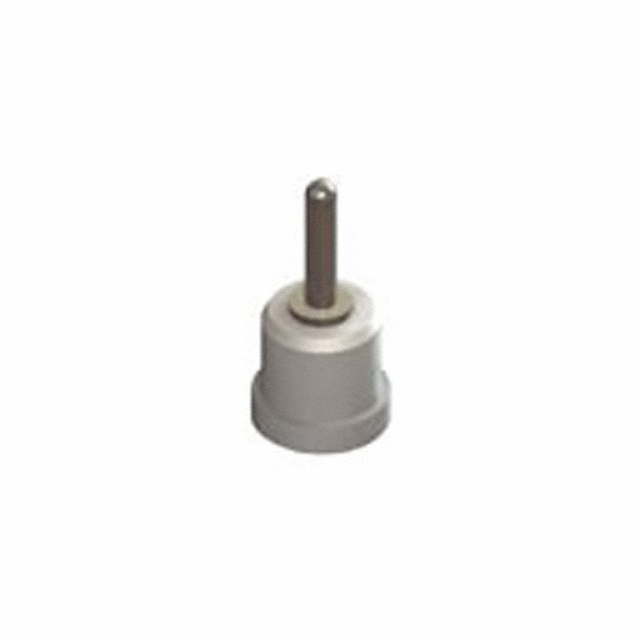

PC Pin Terminal Connector Through Hole, Bottom Entry Tin 0.040" (1.02mm) Dia
Technical Specifications
Parameters and characteristics for this part
| Specification | 11075 |
|---|---|
| Board Thickness | 0.062 in |
| Contact Finish | Tin |
| Contact Material | Brass |
| Flange Diameter | 0.172 in |
| Insulation | Insulated |
| Insulation Color | White |
| Length - Above Flange | 0.31 in |
| Length - Overall | 0.35 in |
| Material - Insulation | PTFE, Polytetrafluoroethylene |
| Mounting Hole Diameter | 0.136 in |
| Mounting Type | Bottom Entry, Through Hole |
| Pin Size - Above Flange (Diameter) | 0.04 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Press-Fit |
