FMC2838316-12
ActiveFairview Microwave

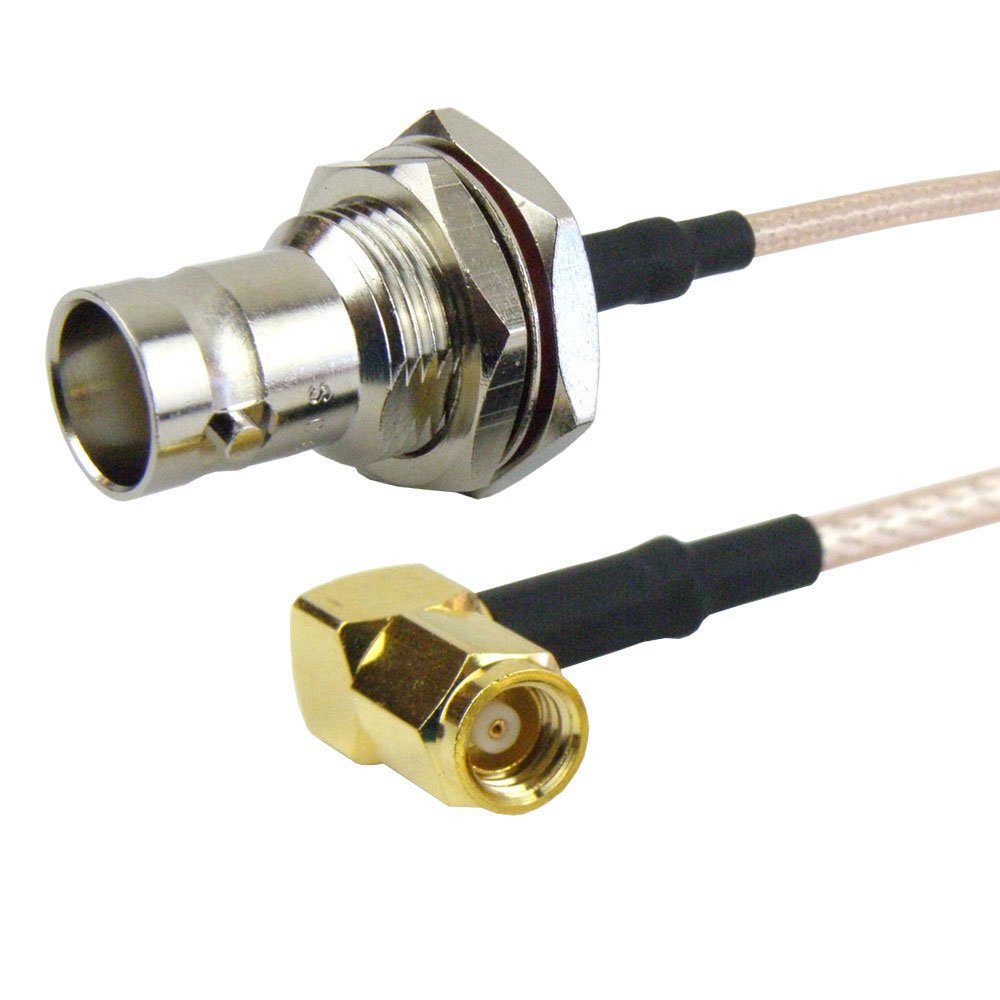

CBL ASSY SMCPLUG-BNCJACK 12
FMC2838316-12
ActiveFairview Microwave
CBL ASSY SMCPLUG-BNCJACK 12
Description
General part information
FMC2838316-12
Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | FMC2838316-12 |
|---|---|
| 1st Connector | Right Angle, SMC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | BNC Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 316 |
| Color | Tan |
| Connector Impedance | 50 Ohms |
| Length | 12 in |
| Overall Impedance | 50 Ohms |
| Style | SMC, BNC |
