Specification	LTR100JZPF30R0

Composition	Thick Film
Features	Pulse Withstanding, Automotive AEC-Q200
Height - Seated (Max)	0.028 in, 0.026 in
Number of Terminations	2
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Package / Case	Wide 2512 (6432 Metric), 1225
Package Name	1225
Power (Watts)	3 W
Ratings	AEC-Q200
Resistance	30 Ohm
Size / Dimension Length	0.126 in
Size / Dimension Width	0.252 in
Supplier Device Package	1225
Temperature Coefficient	100 ppm/°C
Tolerance	1 %

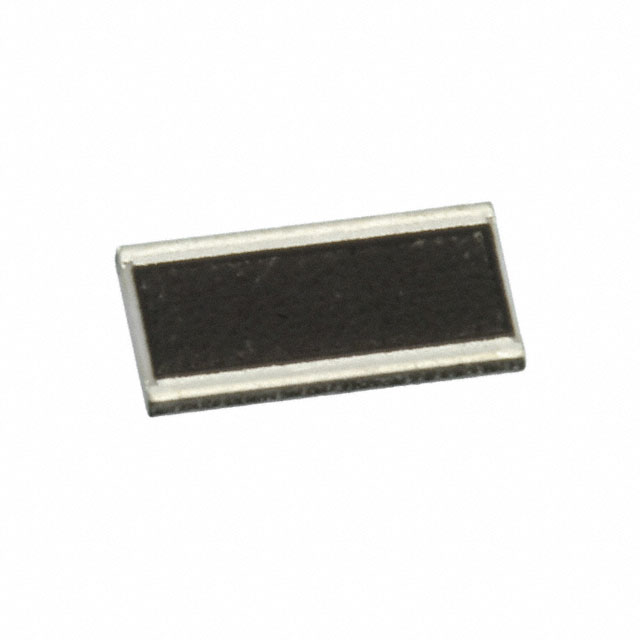

LTR Series

Part	Composition	Tolerance	Power (Watts)	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Height - Seated (Max)	Number of Terminations	Package Name	Features	Size / Dimension Width	Size / Dimension Length	Temperature Coefficient	Resistance	Supplier Device Package	Power (Watts) Options	Ratings
Rohm Semiconductor LTR18EZPJ331	Thick Film	5 %	1.5 W	0612 Wide 1206 (3216 Metric)	155 °C	-55 °C	0.026 in	2	0612 (1632 Metric)	Automotive AEC-Q200 Pulse Withstanding	0.126 in	0.063 in	200 ppm/°C	330 Ohm
Rohm Semiconductor LTR50UZPJ271
Rohm Semiconductor LTR18EZPF1800	Thick Film	1 %	1.5 W	0612 Wide 1206 (3216 Metric)	155 °C	-55 °C	0.026 in	2	0612	Automotive AEC-Q200 Pulse Withstanding	0.126 in	0.063 in	100 ppm/°C	180 Ohm	0612
Rohm Semiconductor LTR10EZPJ682	Thick Film	5 %	250 mW	0508 Wide 0805 (2012 Metric)	155 °C	-55 °C	0.026 in	2	0805	Automotive AEC-Q200 Pulse Withstanding	0.079 in	0.047 in	200 ppm/°C	6.8 kOhm		1/4W
Rohm Semiconductor LTR100JZPF2200	Thick Film	1 %	3 W	1225 Wide 2512 (6432 Metric)	155 °C	-55 °C	0.028 in	2	1225	Automotive AEC-Q200 Pulse Withstanding	0.252 in	0.126 in	100 ppm/°C	220 Ohm	1225
Rohm Semiconductor LTR18EZPF1331	Thick Film	1 %	750 mW	0612 Wide 1206 (3216 Metric)	155 °C	-55 °C	0.026 in	2	0612 (1632 Metric)	Automotive AEC-Q200 Pulse Withstanding	0.126 in	0.063 in	100 ppm/°C	1.33 kOhm		3/4W	AEC-Q200
Rohm Semiconductor LTR50UZPJ680	Thick Film	5 %	1 W	1020 Wide 2010 (5025 Metric)	155 °C	-55 °C	0.026 in	2	2010	Automotive AEC-Q200 Pulse Withstanding	0.197 in	0.098 in	200 ppm/°C	68 Ohm			AEC-Q200
Rohm Semiconductor LTR100JZPF2202	Thick Film	1 %	3 W	1225 Wide 2512 (6432 Metric)	155 °C	-55 °C	0.028 in	2	1225	Automotive AEC-Q200 Pulse Withstanding	0.252 in	0.126 in	100 ppm/°C	22 kOhm	1225		AEC-Q200
Rohm Semiconductor LTR18EZPJ271	Thick Film	5 %	1.5 W	0612 Wide 1206 (3216 Metric)	155 °C	-55 °C	0.026 in	2	0612 (1632 Metric)	Automotive AEC-Q200 Pulse Withstanding	0.126 in	0.063 in	200 ppm/°C	270 Ohm			AEC-Q200
Rohm Semiconductor LTR50UZPJ684
