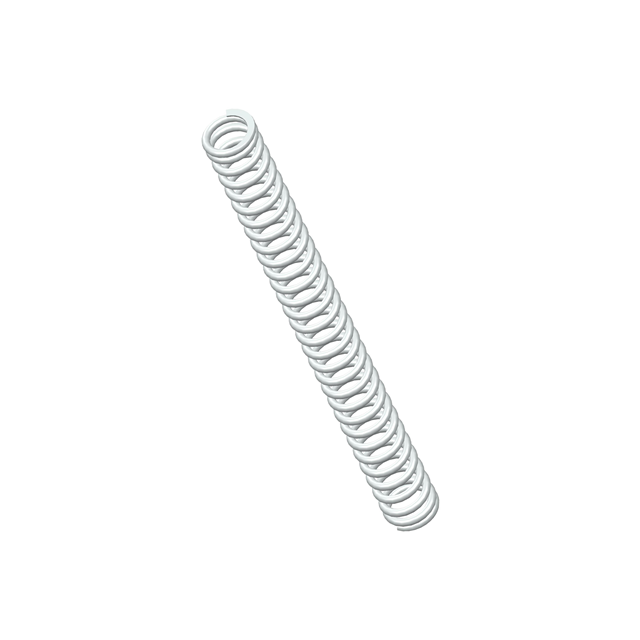

70699SCS
ActiveCentury Spring Corp
COMP O= .240,L= 2.50,W= .035
70699SCS
ActiveCentury Spring Corp
COMP O= .240,L= 2.50,W= .035
Description
General part information
70699SCS
COMP O= .240,L= 2.50,W= .035
Technical Specifications
Parameters and characteristics for this part
| Specification | 70699SCS |
|---|---|
| Diameter - Inside | 0.17 in |
| Diameter - Outside | 0.24 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 2.5 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 7.4 lbs/in |
| Type | Compression |
| Wire Diameter | 0.035 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
