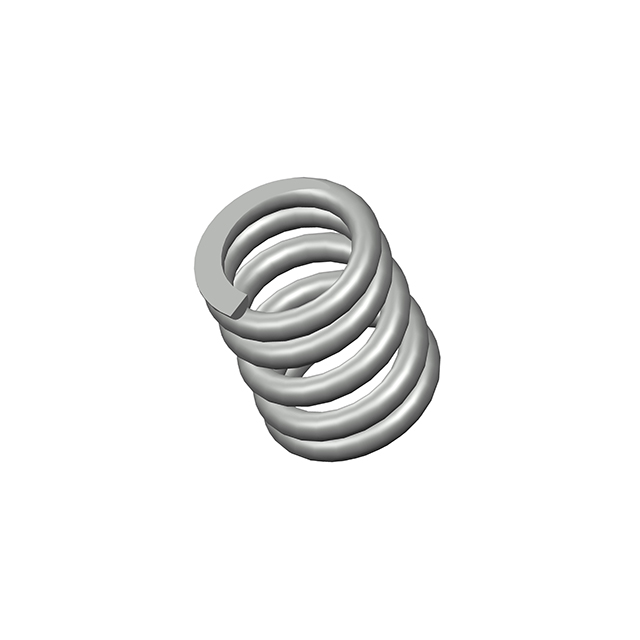

72751CS
ActiveCentury Spring Corp
COMP O=1.225,L= 1.50,W= .192
72751CS
ActiveCentury Spring Corp
COMP O=1.225,L= 1.50,W= .192
Description
General part information
72751CS
COMP O=1.225,L= 1.50,W= .192
Technical Specifications
Parameters and characteristics for this part
| Specification | 72751CS |
|---|---|
| Diameter - Inside | 0.841 in |
| Diameter - Outside | 1.225 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 1.5 in |
| Material | Music Wire |
| Rate (lbs/in) | 516 lbs/in |
| Type | Compression |
| Wire Diameter | 0.192 in |
