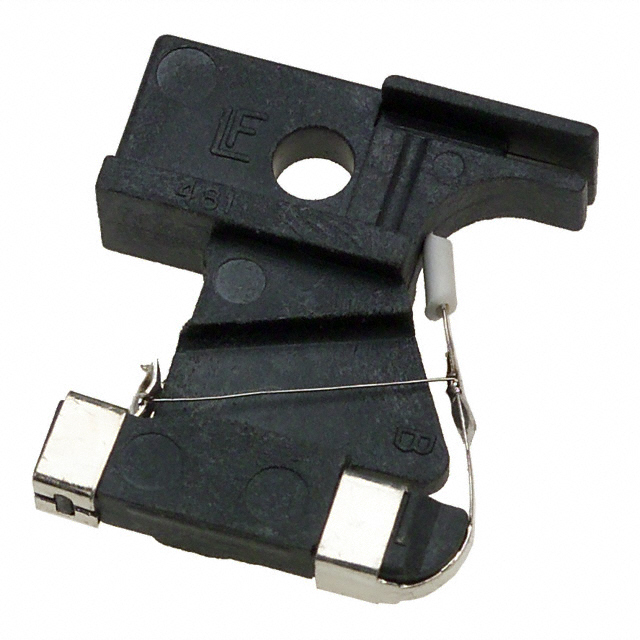

04811.33H
ObsoleteLITTELFUSE
INDICATING, FUSE, COLOR WHITE, CURRENT RATING OF FUSE 1 1/3 AMPERE
04811.33H
ObsoleteLITTELFUSE
INDICATING, FUSE, COLOR WHITE, CURRENT RATING OF FUSE 1 1/3 AMPERE
Description
General part information
04811.33H
1.33A 125 VAC 125 VDC Fuse Indicating Fuse Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | 04811.33H |
|---|---|
| Applications | Telecom |
| Approval Agency | CSA, UR |
| Breaking Capacity | 300 A |
| Current Rating | 1.33 A |
| DC Cold Resistance | 0.48 Ohms |
| Features | Indicating |
| Fuse Type | Indicating Fuse |
| Melting I²t | 1.58 |
| Mounting Type | Requires Holder |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Alarm Indicator |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.772 in |
| Size / Dimension Length | 0.665 in |
| Size / Dimension Width | 0.228 in |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
