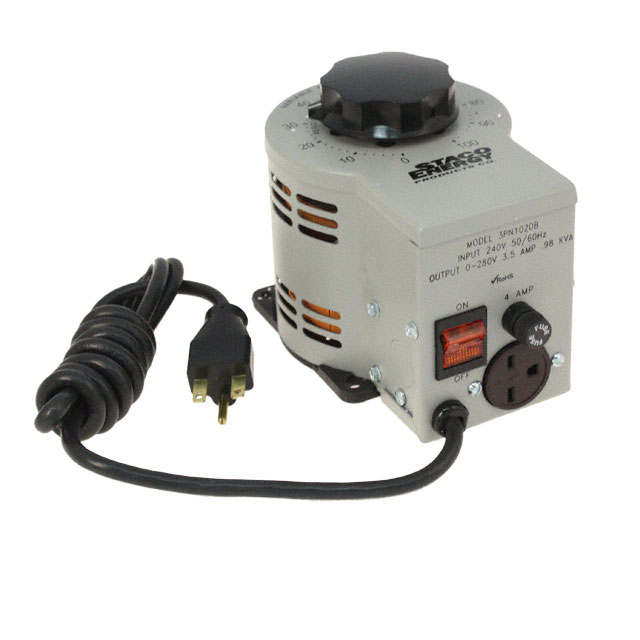

3PN1020B

Active

Staco Energy Products Company

VARIABLE, PLUG IN, 50HZ / 60HZ, 240V, 280V

Search across all available documentation for this part.

Active

Staco Energy Products Company

VARIABLE, PLUG IN, 50HZ / 60HZ, 240V, 280V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3PN1020B	3PN1020 Series

Constant Current Load - Max	0.98 kVA	0.98 kVA
Constant Current Load - Max [Max]	3.5 A	3.5 A
Input Type	Plug, 6' Cord	Plug, 6' Cord
Output Type	Receptacle	Receptacle
Size [x]	6.96 in	6.96 in
Size [x]	176.78 mm	176.78 mm
Size [y]	4.62 in	4.62 in
Size [y]	117.35 mm	117.35 mm
Size [z]	5.5 in	5.5 in
Size [z]	139.7 mm	139.7 mm
Type	Bench	Bench
Voltage - Output	280 VAC	280 VAC
Voltage - Supply	240 VAC	240 VAC

VARIABLE TRANSFORMER, SINGLE PHASE, 3.5AO, 0-280VO, 0.98KVA, PLUG AND CORD, CASED, BENCH ROHS COMPLIANT: YES

Part	Constant Current Load - Max [Max]	Constant Current Load - Max	Voltage - Output	Voltage - Supply	Size [z]	Size [z]	Size [y]	Size [x]	Size [x]	Size [y]	Output Type	Type	Input Type
Staco Energy Products Company 3PN1020BV	3.5 A	0.98 kVA	280 VAC	240 VAC	5.5 in	139.7 mm	4.62 in	6.96 in	176.78 mm	117.35 mm	Receptacle	Bench	6' Cord, Plug
Staco Energy Products Company 3PN1020BA	3.5 A	0.98 kVA	280 VAC	240 VAC	5.5 in	139.7 mm	4.62 in	6.96 in	176.78 mm	117.35 mm	Receptacle	Bench	6' Cord, Plug
Staco Energy Products Company 3PN1020B	3.5 A	0.98 kVA	280 VAC	240 VAC	5.5 in	139.7 mm	4.62 in	6.96 in	176.78 mm	117.35 mm	Receptacle	Bench	6' Cord, Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 750.00
Newark	Each	1	$ 827.20
		5	$ 769.29

General part information

The 3PN1020B is a 1-phase Variable Transformer with coil tapping arrangements allow for 0 to input line voltage or 17% above line voltage.
