Description
General part information

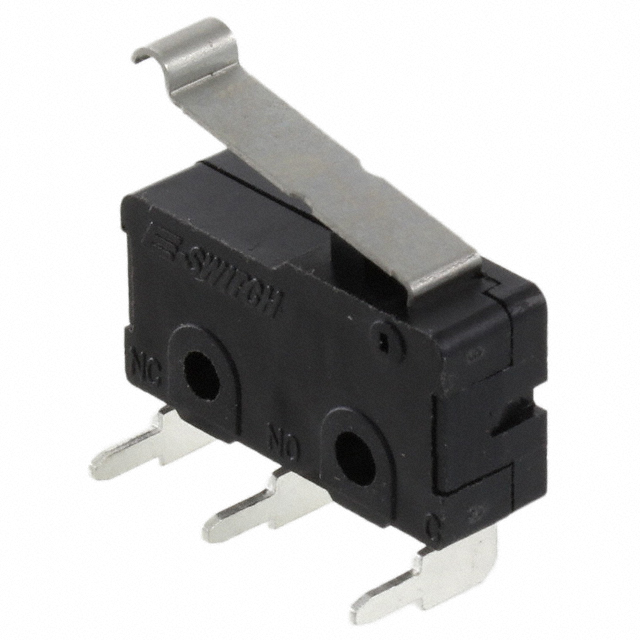

MS085R Series
Switch SPDT Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | MS085R104F045V1A |
|---|---|
| Actuator Type | Simulated Roller, Lever |
| Circuit | SPDT |
| Current Rating | 0.4 VA |
| Electrical Life (Cycles) | 50000 |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Through Hole, Right Angle |
| Operating Force | 45 gf |
| Operating Position (Length) | 0.429 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Pretravel (Length) | 0.125 in |
| Release Force | 20 gf |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
