Description
General part information

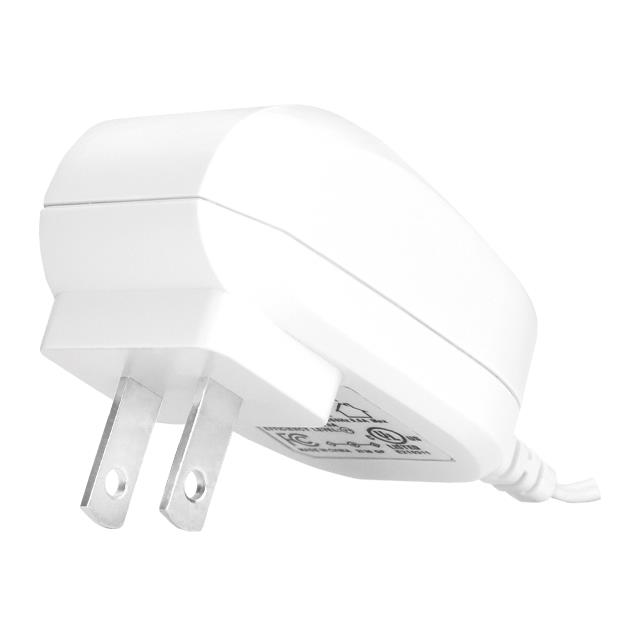

SWH15-5B-NW-P5
5V 15 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
Technical Specifications
Parameters and characteristics for this part
| Specification | SWH15-5B-NW-P5 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | FCC, cULus |
| Cord Length | 70.9 in |
| Current - Output (Max) | 3 A |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| No Load Power Consumption | 100 mW |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector I.D. | 2.1 mm |
| Output Connector Length | 9.5 mm |
| Output Connector O.D. | 5.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 15 W |
| Region Utilized | North America |
| Size / Dimension Height | 1.31 in |
| Size / Dimension Length | 2.44 in |
| Size / Dimension Width | 1.56 in |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output | 5 VDC |
