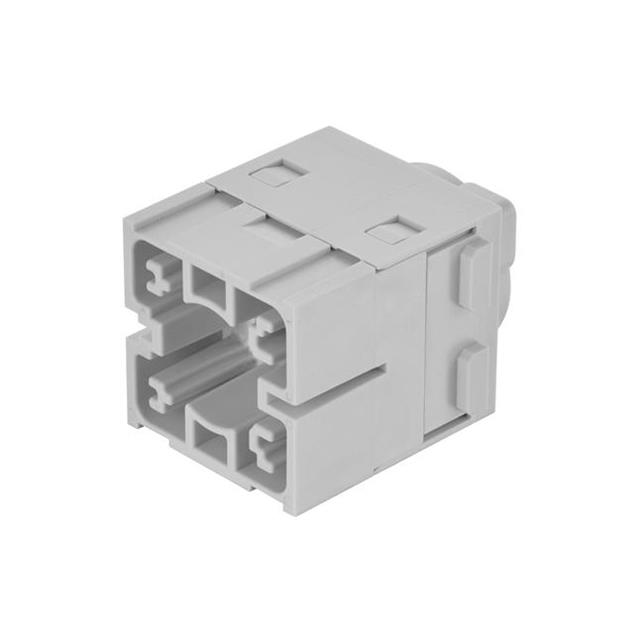

Specification	09140013005

Color	Gray
Connector Type	Module
Current Rating	300 A
Gender	Male
Housing Material	PC, Polycarbonate
Material Flammability Rating	UL94 V-0
Number of Positions	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Termination Style	Screw
Voltage Rating	1000 V

09140013 Series

Part	Housing Material	Color	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Connector Type	Current Rating	Number of Positions	Gender	Termination Style	Specifications	For Use With/Related Products	Accessory Type	Contact Type	Contact Material	Contact Finish
HARTING 09140013102	PC Polycarbonate	Gray	UL94 V-0	125 °C	-40 °C	800 V	Module without Contacts	200 A	1	Female	Crimp
HARTING 09140013011												Male	Han-Modular® Gigabit Modules	Insert Receiving Frame
HARTING 09140013001	PC Polycarbonate	Gray	UL94 V-0	125 °C	-40 °C	1000 V	Module without Contacts	200 A	1	Male	Crimp				Han-Modular®
HARTING 09140013034
HARTING 09140013172	Zinc Die Cast			125 °C	-40 °C		Module		1	Female	Crimp					Copper Alloy	Silver
HARTING 09140013032	PC Polycarbonate	Yellow	UL94 V-0	125 °C	-40 °C		Insert without Contacts		1	Male	Crimp Screw				Han-Modular®
HARTING 09140013031	PC Polycarbonate	Gray	UL94 V-0	125 °C	-40 °C	830 V	Module without Contacts	100 A	1	Male	Crimp Screw
HARTING 09140013072	Zinc Die Cast			125 °C	-40 °C		Module		1	Male	Crimp					Copper Alloy	Silver
HARTING 09140013173	Zinc Die Cast			125 °C	-40 °C		Module		1	Female	Crimp					Copper Alloy	Silver
HARTING 09140013033										Male
