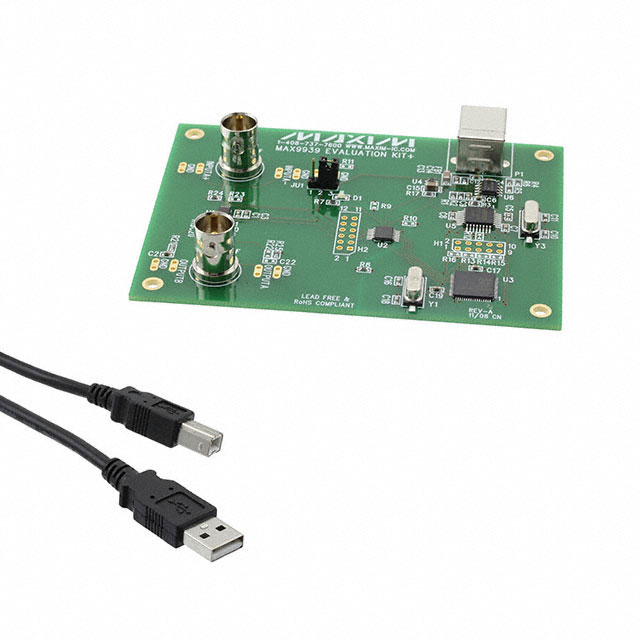

MAX9939EVKIT+

Active

Analog Devices Inc./Maxim Integrated

KIT EVAL FOR MAX9939

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MAX9939EVKIT+

Active

Analog Devices Inc./Maxim Integrated

KIT EVAL FOR MAX9939

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MAX9939EVKIT+	MAX9939 Series

Amplifier Type	Programmable Gain	Programmable Gain
Board Type	Fully Populated	Fully Populated
Channels per IC	2 - Dual	2 - Dual
Current - Input Bias	-	1 pA
Current - Output / Channel [custom]	70 mA	70 mA
Current - Supply	-	3.4 mA
Current - Supply (Main IC)	3.4 mA	3.4 mA
Gain Bandwidth Product	-	279 MHz
Mounting Type	-	Surface Mount
Number of Circuits	-	2
Operating Temperature	-	125 °C
Operating Temperature	-	-40 °C
Output Type	Differential	Differential
Package / Case	-	10-MSOP, 10-TFSOP
Package / Case	-	3 mm
Package / Case	-	0.118 in
Slew Rate	9 V/µs	9 V/µs
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	10-uMAX/uSOP
Utilized IC / Part	MAX9939	MAX9939
Voltage - Input Offset	-	1.5 mV
Voltage - Supply Span (Max)	-	5.5 V
Voltage - Supply Span (Min)	-	2.9 V
Voltage - Supply, Single/Dual (±) [Max]	5.5 V	5.5 V
Voltage - Supply, Single/Dual (±) [Min]	2.9 V	2.9 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 69.96

MAX9939 Series

IC OPAMP PGA 2 CIRC 10UMAX/USOP

Part	Voltage - Input Offset	Mounting Type	Slew Rate	Package / Case	Package / Case [x]	Package / Case [x]	Voltage - Supply Span (Max) [Max]	Current - Supply	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Gain Bandwidth Product	Voltage - Supply Span (Min) [Min]	Current - Output / Channel [custom]	Current - Input Bias	Output Type	Amplifier Type	Number of Circuits	Board Type	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Utilized IC / Part	Channels per IC	Supplied Contents	Current - Supply (Main IC)
Analog Devices Inc./Maxim Integrated MAX9939AUB/V+	1.5 mV	Surface Mount	9 V/µs	10-MSOP, 10-TFSOP	3 mm	0.118 in	5.5 V	3.4 mA	10-uMAX/uSOP	125 °C	-40 °C	279 MHz	2.9 V	70 mA	1 pA	Differential	Programmable Gain	2
Analog Devices Inc./Maxim Integrated MAX9939AUB+	1.5 mV	Surface Mount	9 V/µs	10-MSOP, 10-TFSOP	3 mm	0.118 in	5.5 V	3.4 mA	10-uMAX/uSOP	125 °C	-40 °C	279 MHz	2.9 V	70 mA	1 pA	Differential	Programmable Gain	2
Analog Devices Inc./Maxim Integrated MAX9939AUB+T	1.5 mV	Surface Mount	9 V/µs	10-MSOP, 10-TFSOP	3 mm	0.118 in	5.5 V	3.4 mA	10-uMAX/uSOP	125 °C	-40 °C	279 MHz	2.9 V	70 mA	1 pA	Differential	Programmable Gain	2
Analog Devices Inc./Maxim Integrated MAX9939AUB/GG8	1.5 mV	Surface Mount	9 V/µs	10-MSOP, 10-TFSOP	3 mm	0.118 in	5.5 V	3.4 mA	10-uMAX/uSOP	125 °C	-40 °C	279 MHz	2.9 V	70 mA	1 pA	Differential	Programmable Gain	2
Analog Devices Inc./Maxim Integrated MAX9939EVKIT+			9 V/µs											70 mA		Differential	Programmable Gain		Fully Populated	2.9 V	5.5 V	MAX9939	2 - Dual	Board(s)	3.4 mA
Analog Devices Inc./Maxim Integrated MAX9939AUB/V+T	1.5 mV	Surface Mount	9 V/µs	10-MSOP, 10-TFSOP	3 mm	0.118 in	5.5 V	3.4 mA	10-uMAX/uSOP	125 °C	-40 °C	279 MHz	2.9 V	70 mA	1 pA	Differential	Programmable Gain	2

Description

General part information

MAX9939 Series

MAX9939 2 - Dual Channels per IC Programmable Gain Amplifier Evaluation Board
