TXR40AB90-1406AI

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSHELL ADPT SZ15 D M22

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Tinel-Lock Adapters Spec

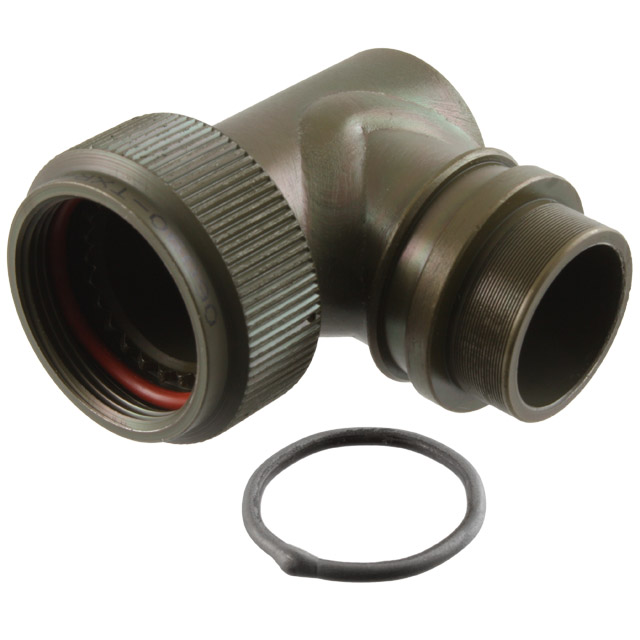

TXR40AB90-1406AI

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSHELL ADPT SZ15 D M22

Deep-Dive with AI

DocumentsDatasheet Tinel-Lock Adapters Spec

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

TXR40AB90 Series

Olive Drab Connector Backshell, Heat Shrink Adapter M22x1 15, D

Documents

Technical documentation and resources

Datasheet

Tinel-Lock Adapters Spec

Datasheet

Specification	TXR40AB90-1406AI	TXR40AB90 Series

Cable Exit	90 °	90 °
Color	Olive Drab	Olive Drab
Diameter - Outside	-	0.709 - 1.713 "
Diameter - Outside [diameter]	1.142 in	1.142 - 43.5 in
Diameter - Outside [diameter]	29 mm	29 mm
Features	Tinel Lock	Tinel Lock
For Use With/Related Products	MIL-DTL-38999 Series III, IV	MIL-DTL-38999 Series III, IV
Includes	1 pcs, 1 pcs, 1 pcs, 1 pcs	1 pcs
Includes	-	1 Braid, 2 O-Rings, 2 pc Backshell, 1 Tinel Ring
Ingress Protection	Environment Resistant	Environment Resistant
Material	Aluminum Alloy	Aluminum Alloy
Plating	Cadmium	Cadmium
Shell Size - Insert	15	11 - 25
Shell Size - Insert	D	D, G, J, F, B, 17, E, H, C
Shell Size - Insert	-	9
Shell Size - Insert	-	A
Shielding	Shielded	Shielded
Thread Size	-	M31x1, M37x1, M28x1, M15x1, M25x1, M12x1, M34x1, M18x1
Type	Backshell, Heat Shrink Adapter	Backshell, Heat Shrink Adapter

Part	Plating	Diameter - Outside [diameter]	Diameter - Outside [diameter]	For Use With/Related Products	Includes	Shell Size - Insert	Shell Size - Insert	Material	Shielding	Color	Cable Exit	Features	Type	Ingress Protection	Diameter - Outside [diameter]	Thread Size	Includes
