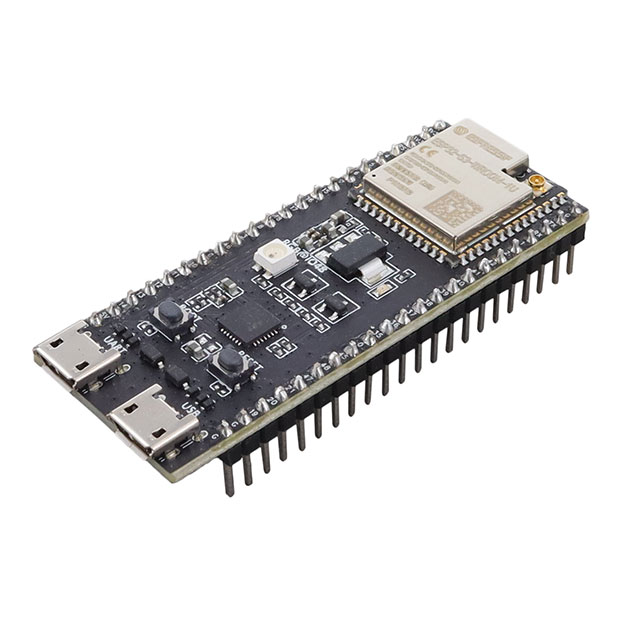

Specification	ESP32-S3-DEVKITC-1U-N8R8

Contents	Board
For Use With/Related Products	ESP32-S3-WROOM-1U-N8R8
Frequency	2.4 GHz
Supplied Contents	Board(s)
Type	WiFi, Bluetooth® 5.x (BLE), Transceiver, WLAN), 802.11 b/g/n (Wi-Fi
Utilized IC / Part	ESP32-S3-WROOM-1U-N8R8

ESP32-S3 Series

Part	Voltage - Supply	Operating Temperature (Min)	Operating Temperature (Max)	Serial Interfaces	Power - Output	RF Family/Standard	Protocol	Type	Mounting Type	Sensitivity	Package / Case	Package Length	Package Name	Package Width	GPIO Count	Frequency (Max)	Frequency (Min)	Data Rate (Max)	Utilized IC / Part	Data Rate	Current - Transmitting (Min)	Current - Transmitting (Max)	Frequency	Antenna Type	Current - Receiving (Min)	Current - Receiving (Max)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Memory Type	Memory Size (ROM)	Memory Size (Flash)	Supplied Contents	For Use With/Related Products	Contents	Memory Size (SRAM)	Embedded Bit Width	Embedded	Sensor Type	Sensing Range	Interface	Memory Size (PSRAM)	Function
Espressif Systems ESP32-S3	3.3 V	-40 °C	105 °C	I2C I2S SPI UART USB	21 dBm	Bluetooth WiFi	802.11b 802.11g 802.11n Bluetooth v5.0	TxRx + MCU	Surface Mount	-98.4 dBm	56-VFQFN Exposed Pad	7 mm	56-QFN	7 mm	30	2.484 GHz	2.412 GHz	150 Mbps
Espressif Systems ESP32-S3-WROOM-1U-N8		-40 °C	85 °C	ADC GPIO I2C I2S PWM SPI UART USB	20.5 dBm	Bluetooth WiFi	802.11b 802.11g 802.11n Bluetooth v5.0		Surface Mount	-103.5 dBm	41-SMD Module								ESP32-S3	150 MHz	285 mA	355 mA	2.4 GHz	Antenna Not Included U.FL	95 mA	97 mA	3.6 V	3 V	Flash ROM	384 kB	8 MB
Espressif Systems ESP32-S3-DEVKITC-1-N8R2								802.11 b/g/n (Wi-Fi Bluetooth® 5.x (BLE) Transceiver WiFi WLAN)											ESP32-S3-WROOM-1-N8R2				2.4 GHz									Board(s)	ESP32-S3-WROOM-1-N8R2	Board
Espressif Systems ESP32-S3FH4R2		-40 °C	85 °C	ADC GPIO I2C I2S IrDA JTAG PCM PWM SDIO SPI UART USB	21 dBm	Bluetooth WiFi	802.11b 802.11g 802.11n Bluetooth v5.0	TxRx + MCU	Surface Mount	-104.5 dBm	41-SMD Module 56-VFQFN Exposed Pad	7 mm	56-QFN	7 mm	45			150 Mbps	ESP32-S3R8	150 MHz	283 mA	340 mA	2.4 GHz	Antenna Not Included	88 mA	91 mA	3.6 V	3 V	Flash SRAM		2 MB 4 MB				2 MB
Espressif Systems ESP32-S3-EYE		-40 °C	105 °C	ADC GPIO I2C I2S IrDA JTAG PCM PWM SDIO SPI UART USB	21 dBm	Bluetooth WiFi	802.11b 802.11g 802.11n Bluetooth v5.0		Surface Mount	-104.5 dBm	56-VFQFN Exposed Pad								ESP32-S3R8	150 MHz	283 mA	340 mA	2.4 GHz	Antenna Not Included	88 mA	91 mA	3.6 V	3 V						Board		32 bit	MCU Yes	Image Sensor	2 Megapixel	RF
Espressif Systems ESP32-S3R8V	3.3 V	-40 °C	85 °C	I2C I2S SPI UART USB	21 dBm	Bluetooth WiFi	802.11b 802.11g 802.11n Bluetooth v5.0	TxRx + MCU	Surface Mount	-98.4 dBm	56-VFQFN Exposed Pad	7 mm	56-QFN	7 mm	30	2.484 GHz	2.412 GHz	150 Mbps											pSRAM												8 MB
Espressif Systems ESP32-S3-BOX-LITE								Audio											ESP32-S3													Board(s)		Board		32 bit	MCU Yes					Voice Recognition
Espressif Systems ESP32-S3-WROOM-1U-N8R2		-40 °C	85 °C	ADC GPIO I2C I2S PWM SPI UART USB	20.5 dBm	Bluetooth WiFi	802.11b 802.11g 802.11n Bluetooth v5.0		Surface Mount	-103.5 dBm	41-SMD Module								ESP32-S3R2	150 MHz	285 mA	355 mA	2.4 GHz	Antenna Not Included U.FL	95 mA	97 mA	3.6 V	3 V	Flash ROM SRAM	384 kB	8 MB				2 MB
Espressif Systems ESP32-S3-WROOM-1U-N8R8		-40 °C	65 °C	ADC GPIO I2C I2S PWM SPI UART USB	20.5 dBm	Bluetooth WiFi	802.11b 802.11g 802.11n Bluetooth v5.0		Surface Mount	-103.5 dBm	41-SMD Module								ESP32-S3R8	150 MHz	285 mA	355 mA	2.4 GHz	Antenna Not Included U.FL	95 mA	97 mA	3.6 V	3 V	Flash ROM SRAM	384 kB	8 MB				8 MB
Espressif Systems ESP32-S3-WROOM-1-N4		-40 °C	85 °C	ADC GPIO I2C I2S PWM SPI UART USB	20.5 dBm	Bluetooth WiFi	802.11b 802.11g 802.11n Bluetooth v5.0		Surface Mount	-103.5 dBm	41-SMD Module								ESP32-S3	150 MHz	285 mA	355 mA	2.4 GHz	PCB Trace	95 mA	97 mA	3.6 V	3 V	Flash ROM	384 kB	4 MB
