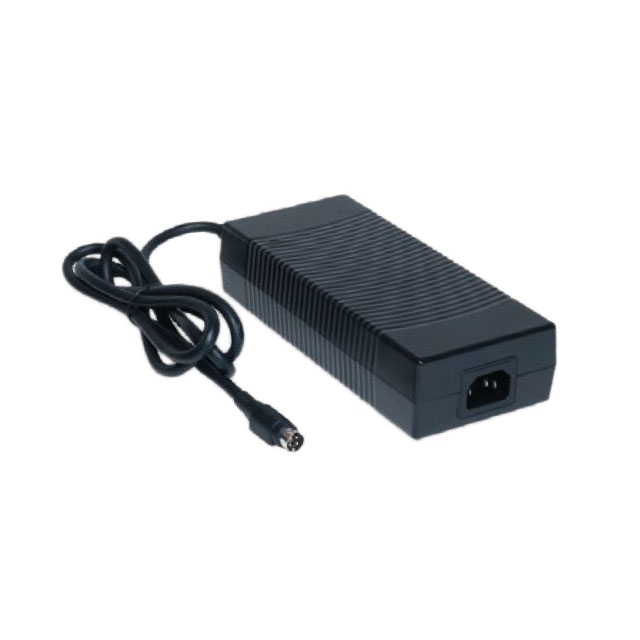

L6R200D-480

Active

Tri-Mag, LLC

AC/DC DESKTOP ADAPTER 48V 200W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L6R200D-480

Active

Tri-Mag, LLC

AC/DC DESKTOP ADAPTER 48V 200W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L6R200D-480

Applications	ITE (Commercial)
Approval Agency	TUV, cULus, EN, FCC, CE
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	4.17 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	4 Pin
Output Connector	Power DIN
Power (Watts)	200 W
Region Utilized	International
Size / Dimension [x]	7.2 in
Size / Dimension [x]	183 mm
Size / Dimension [y]	3.19 in
Size / Dimension [y]	81 mm
Size / Dimension [z]	1.65 "
Size / Dimension [z]	42 mm
Standard Number	62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	48 V
Weight	850 g
Weight	1.874 lb

L6R200 Series

Part	Input Type	Output Connector	Output Connector	Approval Agency	Voltage - Output	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max) [Max]	No Load Power Consumption [Max]	Form	Power (Watts)	Operating Temperature [Max]	Region Utilized	Weight	Weight	Efficiency	Input Connector	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Standard Number	Cord Length	Cord Length	Cord Length
Tri-Mag, LLC L6R200D-135-C14	Cord	4 Pin	Power DIN	CE cULus EN FCC TUV	13.5 V	3.19 in	7.2 in	1.65 "	183 mm	42 mm	81 mm	14 A	150 mW	Desktop (Class I)	189 W	40 °C	International	850 g	1.874 lb	CoC Tier 2 Level VI	IEC 320-C14	ITE (Commercial)	90 VAC	264 VAC	62368-1	1.2 m	47.2 in
Tri-Mag, LLC L6R200D-135-C6	Cord	4 Pin	Power DIN	CE cULus EN FCC TUV	13.5 V	3.19 in	7.2 in	1.65 "	183 mm	42 mm	81 mm	14 A	150 mW	Desktop (Class I)	189 W	40 °C	International	850 g	1.874 lb	CoC Tier 2 Level VI	IEC 320-C6	ITE (Commercial)	90 VAC	264 VAC	62368-1	1.2 m	47.2 in
Tri-Mag, LLC L6R200D-560-C14	Cord	4 Pin	Power DIN	CE cULus EN FCC TUV	56 V	3.19 in	7.2 in	1.65 "	183 mm	42 mm	81 mm	3.58 A	150 mW	Desktop (Class I)	200 W	40 °C	International	850 g	1.874 lb	CoC Tier 2 Level VI	IEC 320-C14	ITE (Commercial)	90 VAC	264 VAC	62368-1		1.5 m	59 in
Tri-Mag, LLC L6R200D-480	Cord	4 Pin	Power DIN	CE cULus EN FCC TUV	48 V	3.19 in	7.2 in	1.65 "	183 mm	42 mm	81 mm	4.17 A	150 mW	Desktop (Class I)	200 W	40 °C	International	850 g	1.874 lb	CoC Tier 2 Level VI	IEC 320-C14	ITE (Commercial)	90 VAC	264 VAC	62368-1		1.5 m	59 in
Tri-Mag, LLC L6R200D-240	Cord	4 Pin	Power DIN	CE cULus EN FCC TUV	24 V	3.19 in	7.2 in	1.65 "	183 mm	42 mm	81 mm	8.3 A	150 mW	Desktop (Class I)	200 W	40 °C	International	850 g	1.874 lb	CoC Tier 2 Level VI	IEC 320-C14	ITE (Commercial)	90 VAC	264 VAC	62368-1		1.5 m	59 in
Tri-Mag, LLC L6R200D-480-C6	Cord	4 Pin	Power DIN	CE cULus EN FCC TUV	48 V	3.19 in	7.2 in	1.65 "	183 mm	42 mm	81 mm	4.17 A	150 mW	Desktop (Class I)	200 W	40 °C	International	850 g	1.874 lb	CoC Tier 2 Level VI	IEC 320-C6	ITE (Commercial)	90 VAC	264 VAC	62368-1		1.5 m	59 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 94.60

Description

General part information

L6R200 Series

48V 200 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
