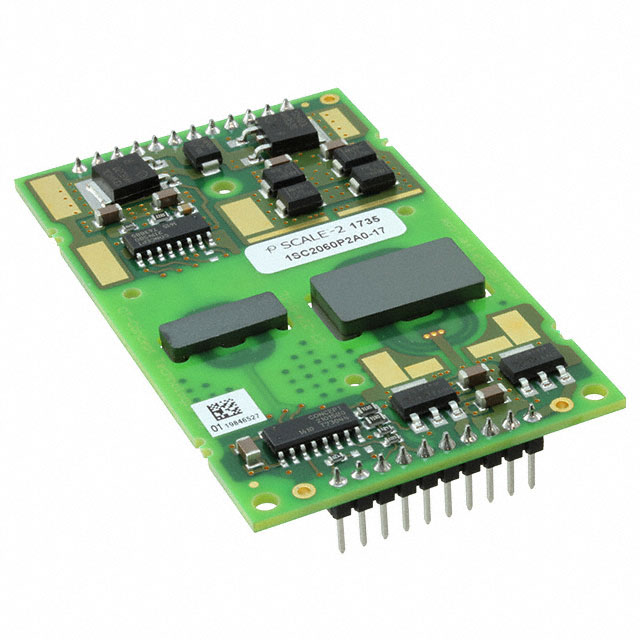

1SC2060P2A0-17

Active

Power Integrations

IGBT DRIVER, 14.5V-15.5V, MODULE ROHS COMPLIANT: NO

Search across all available documentation for this part.

Active

Power Integrations

IGBT DRIVER, 14.5V-15.5V, MODULE ROHS COMPLIANT: NO

Technical Specifications

Parameters and characteristics for this part

Specification	1SC2060P2A0-17

Channel Type	Single
Current - Peak Output (Source, Sink) [custom]	60 A
Current - Peak Output (Source, Sink) [custom]	60 A
Driven Configuration	High-Side, Low-Side
Mounting Type	Surface Mount
Number of Drivers	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Rise / Fall Time (Typ) [custom]	10 ns
Rise / Fall Time (Typ) [custom]	15 ns
Supplier Device Package	Module
Voltage - Supply [Max]	15.5 V
Voltage - Supply [Min]	14.5 V

IGBT DRIVER, 14.5V-15.5V, MODULE ROHS COMPLIANT: NO

Part	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Number of Drivers	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Channel Type	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Driven Configuration
Power Integrations 1SC2060P2A0-17	10 ns	15 ns	1	Module	14.5 V	15.5 V	Module	Single	60 A	60 A	Surface Mount	85 °C	-40 °C	High-Side, Low-Side

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

High-Side or Low-Side Gate Driver IC Module
