USB5434-3089JZX
ActiveMicrochip Technology

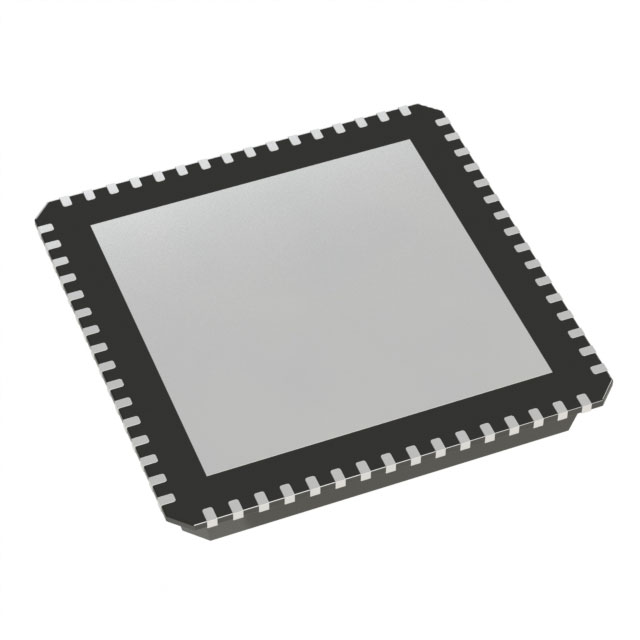

IC USB CONTROLLER 64QFN
Deep-Dive with AI
Search across all available documentation for this part.
USB5434-3089JZX
ActiveMicrochip Technology
IC USB CONTROLLER 64QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | USB5434-3089JZX | USB5434 Series |
|---|---|---|
| Function | Hub Controller | Hub Controller |
| Interface | USB | USB |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Package / Case | 64-VFQFN Exposed Pad | 64-VFQFN Exposed Pad |
| Protocol | USB | USB |
| Standards | USB 3.0 | USB 3.0 |
| Supplier Device Package | 64-QFN (9x9) | 64-QFN (9x9) |
| Voltage - Supply | - | 1.25 - 3.3 V |
| Voltage - Supply [Max] | 3.6 V, 1.31 V | 1.31 - 3.6 V |
| Voltage - Supply [Min] | 1.22 V, 3 V | 1.22 - 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
USB5434 Series
IC CONTROLLER USB 64QFN
| Part | Protocol | Standards | Package / Case | Interface | Function | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply | Voltage - Supply [Max] | Voltage - Supply [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology USB5434-JZX-TR | USB | USB 3.0 | 64-VFQFN Exposed Pad | USB | Hub Controller | 64-QFN (9x9) | 70 °C | 0 °C | 1.25 V, 3.3 V | ||
Microchip Technology USB5434-3083JZX-TR | USB | USB 3.0 | 64-VFQFN Exposed Pad | USB | Hub Controller | 64-QFN (9x9) | 70 °C | 0 °C | 1.31 V, 3.6 V | 1.22 V, 3 V | |
Microchip Technology USB5434-3089JZX | USB | USB 3.0 | 64-VFQFN Exposed Pad | USB | Hub Controller | 64-QFN (9x9) | 70 °C | 0 °C | 1.31 V, 3.6 V | 1.22 V, 3 V | |
Microchip Technology USB5434-3086JZX | USB | USB 3.0 | 64-VFQFN Exposed Pad | USB | Hub Controller | 64-QFN (9x9) | 70 °C | 0 °C | 1.31 V, 3.6 V | 1.22 V, 3 V | |
Microchip Technology USB5434B-JZX | USB | USB 3.0 | 64-VFQFN Exposed Pad | USB | Hub Controller | 64-QFN (9x9) | 70 °C | 0 °C | 1.25 V, 3.3 V | ||
Microchip Technology USB5434-3089JZX-TR | USB | USB 3.0 | 64-VFQFN Exposed Pad | USB | Hub Controller | 64-QFN (9x9) | 70 °C | 0 °C | 1.31 V, 3.6 V | 1.22 V, 3 V |
Description
General part information
USB5434 Series
USB Hub Controller USB 3.0 USB Interface 64-QFN (9x9)
Documents
Technical documentation and resources
No documents available
