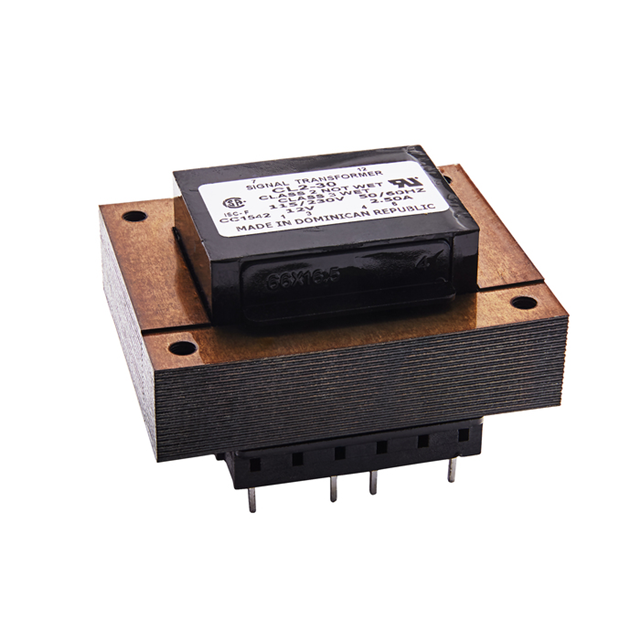

CL2-30-12
ActiveSignal Transformer
PWR XFMR LAMINATED 30VA TH
CL2-30-12
ActiveSignal Transformer
PWR XFMR LAMINATED 30VA TH
Description
General part information
CL2-30-12
PWR XFMR LAMINATED 30VA TH
Technical Specifications
Parameters and characteristics for this part
| Specification | CL2-30-12 |
|---|---|
| Center Tap | No |
| Current - Output (Max) | 2.5 A |
| Height - Seated (Max) | 39.7 mm |
| Mounting Type | Through Hole |
| Power - Max | 30 W |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Single |
| Size / Dimension Length | 66.7 mm |
| Size / Dimension Width | 55.5 mm |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Primary | 230V, 115V |
| Voltage - Secondary (Full Load) | 12 V |
| Weight | 1.2 lbs |
